XENIA 40X

XENIA 40X - Casadei Busellato

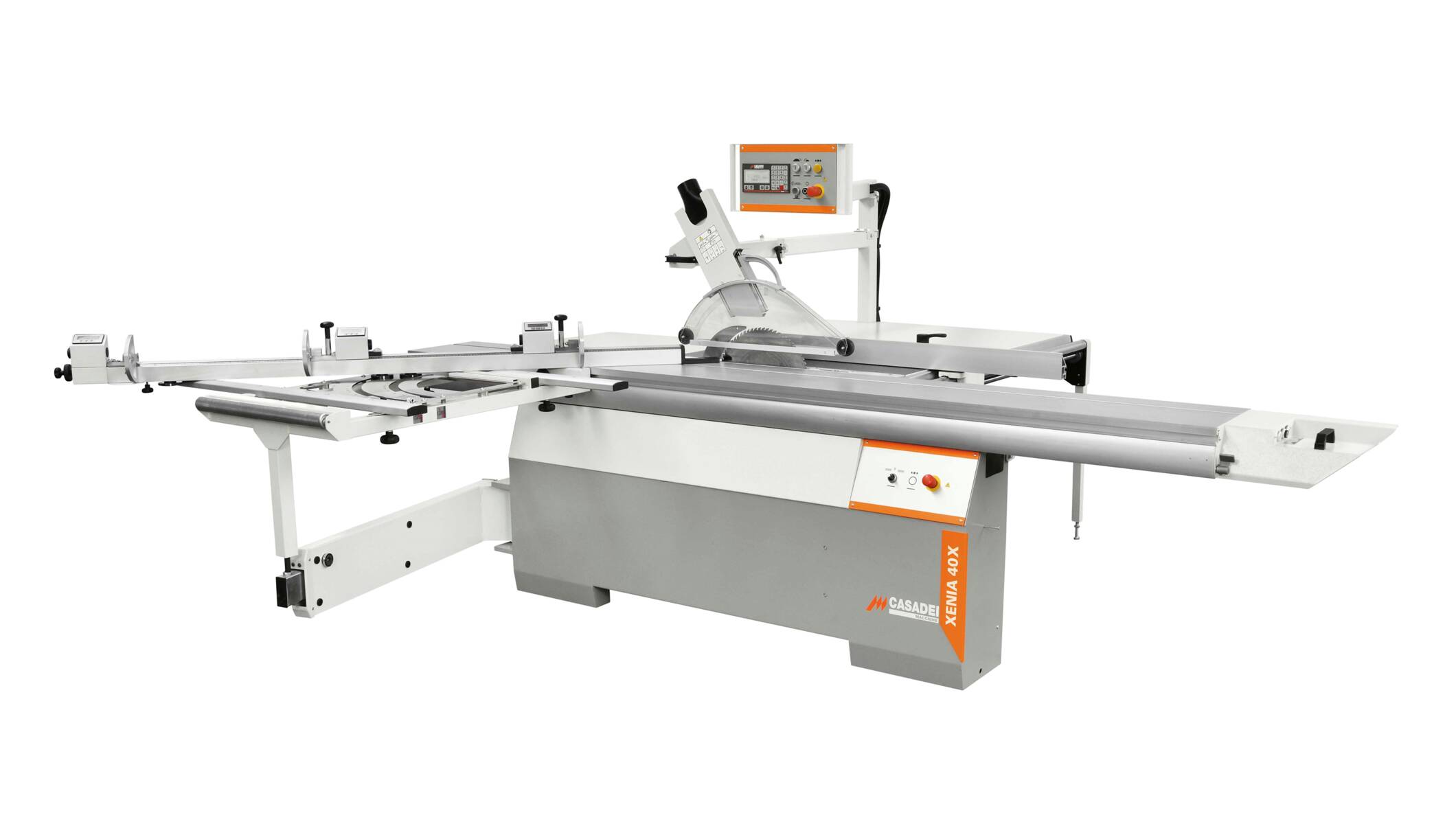

Xenia 40X, circular saw with tilting blade +/-46°, is a complete machine in terms of equipment and with high technologies ensuring high quality squaring.

The double inclination allows the realization of some inclined cuts even on delicate panels, that would not allow the processing on the covered panel side and on details with complex shapes.

Its technical characteristics and ergonomics make the Xenia 40X an ideal machine for small and medium-sized artisan companies.

Equipped with an over-hanging control panel, which ensures maximum ease of use and fast programming, the Xenia 40X circular saw is extremely flexible and performing.

Advantages
  • Flexibility: no limits for inclined cuts thanks to the double inclination of the saw blade that allows to process even complex shapes and covered panels.
  • Reliability: Sliding system of the carriage on prismatic guides in hardened and rectified steel for a smooth and precise long-lasting sliding.
  • Ergonomics: Controls on front side. Ergonomics and ease of use guarantee reduction of time and costs. The mobile control buttons on the head of the carriage are easily accessible and facilitate the use of the machine in any working position.
  • Sturdiness: machine frame of notable thickness and solid construction
Technical data
  XENIA 40X
Max. squaring stroke std. 2600 mm
Table dimensions 1000 x 685 mm
Max. diam. of saw blade with scoring unit installed 400 mm
Saw blade tilting -46° ÷ +46°
Max. saw blade projection at 90° from table with blade ø 400 mm 136 mm
Max. saw blade projection at 45° from table with blade ø 400 mm 97 mm
Main motor power (S6) a 50 Hz 7 kW / 9,4 Hp
Main motor power (S6) a 60 Hz 8 kW / 11 Hp
Scoring unit motor power (S6) a 50 Hz 0,9 kW / 1,2 Hp
Scoring unit motor power (S6) a 60 Hz 1 kW / 1,3 Hp
Documentation
Plus_IT_ES Download
Plus_EN_FR Download
Plus_EN_DE Download
