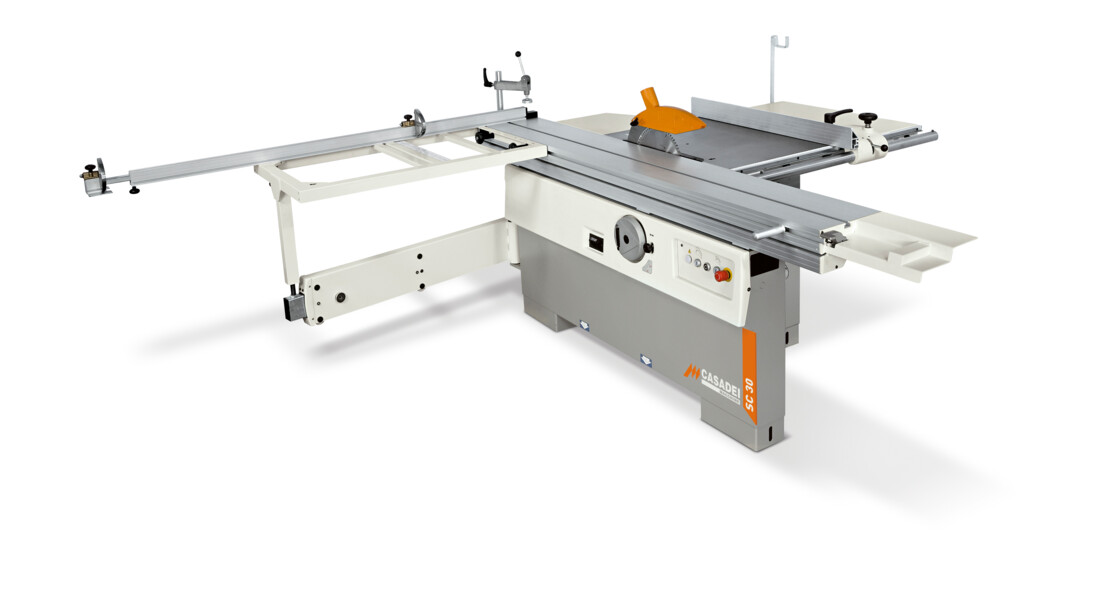

Tilting arbor sliding table panel saw

The SC 30 circular saw is very sturdy and of excellent construction quality.

+

Advantages

">Flexibility: The carriage which slides on prismatic guideways, the ribbed cast iron worktable and the saw unit made entirely of cast iron, allows even large sized parts to be precision machined with ease.
">Ergonomics: ergonomically positioned control panel at the front of the machine.
">Sturdiness: Heavy duty cast iron saw unit with vertical raise & fall of the main blade over a precise dove-tail system.  Tilting system over robust steel trunnions.

Technical data

Fixed table dimensions 560 x 840 mm
Max. diameter of saw blade with scoring unit installed 315 mm
Saw blade tilting 90° ÷ 45°
Max. saw blade projection at 90° with blade Ø 315 mm 100 mm
Max. squaring stroke 2250 mm
Standard cutting width on rip fence 900 mm
Motor power at 50 Hz  4 kW / 5,5 Hp
Motor power at 60 Hz  4,8 kW / 6,5 Hp
