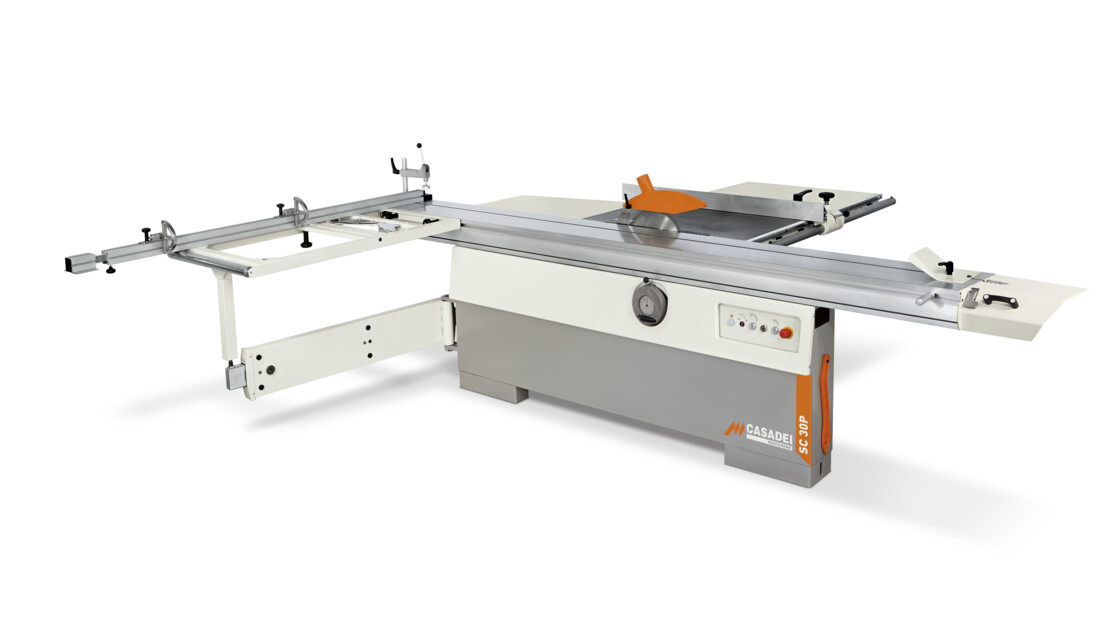

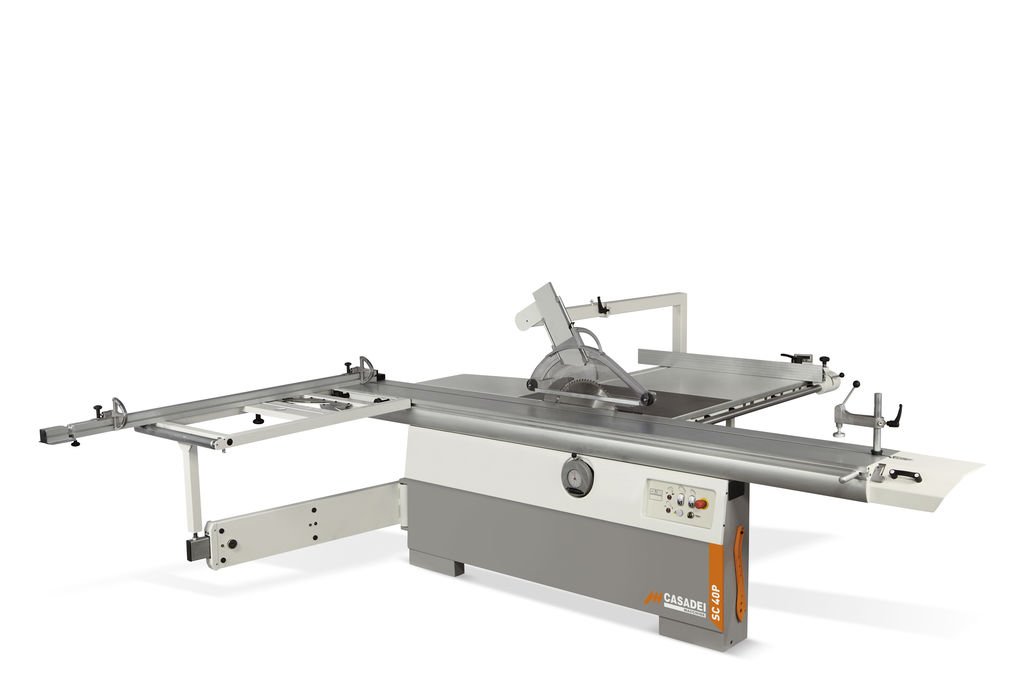

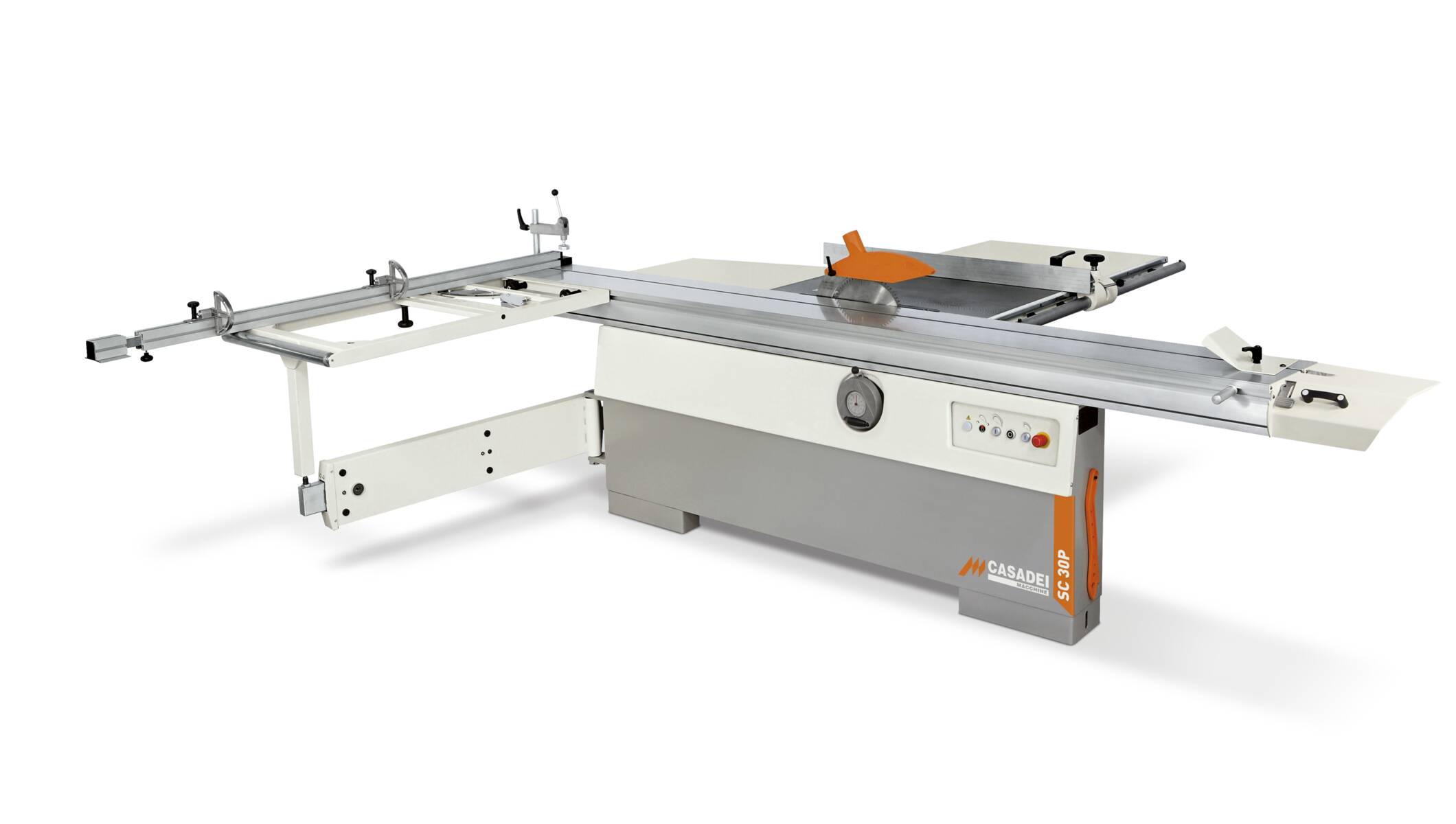

Tilting arbor sliding table panel saw

The SC 30 P and SC 40 P panel sizing circular saws have been designed to satisfy the most demanding customers.

+

Advantages

Reliability: Sliding system consisting of hardened steel prismatic guideways and preloaded ball bearings. Precision, smooth running and absence of maintenance are unique features of the CASADEI sliding table system .
Flexibility: Independent scoring unit as part of the standard equipment of the machine, and a wide range of options.
Sturdiness: Heavy duty cast iron saw unit with vertical raise & fall of the main blade over a precise dove-tail system. Tilting system over robust steel trunnions.

Technical data

  SC 30 P SC 40 P
Max. squaring stroke

2600 mm

Fixed table dimensions

940 x 560 mm

Max. diameter of saw blade with scoring unit installed 315 mm 400 mm
Scoring blade diameter 120 mm
Saw blade tilting 90° ÷ 45°
Saw blade rotation speed RPM 3800
Standard cutting width on rip fence 1270 mm
Motor power at 50 Hz  5 kW / 6,6 Hp
Motor power at 60 Hz  6 kW / 8 Hp
