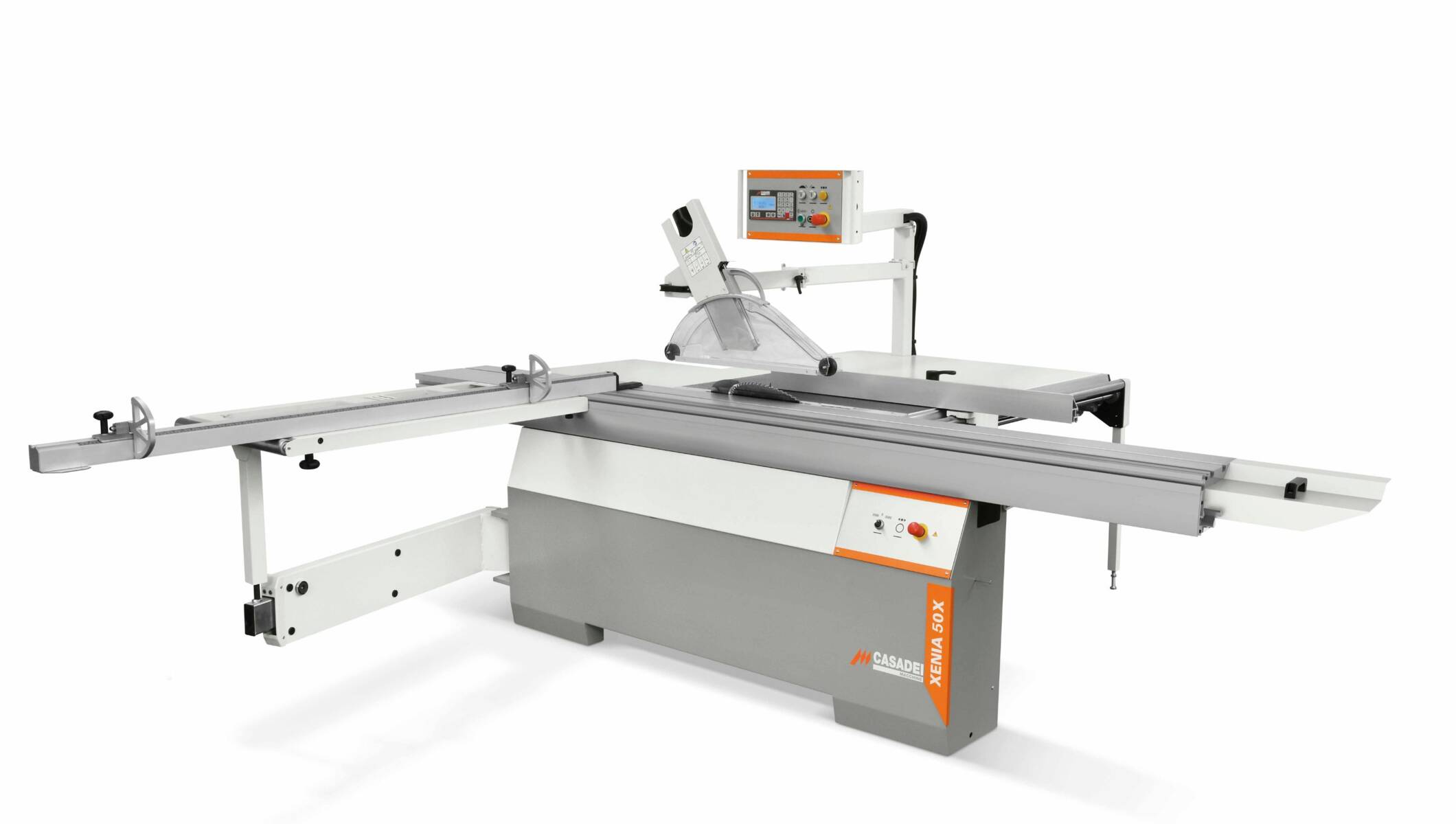

XENIA 50 X
Xenia 50X, circular saw with tilting blade +/-46°, is a complete machine in terms of equipment and with high technologies ensuring high quality squaring.
The double inclination allows the realization of some inclined cuts even on delicate panels, that would not allow the processing on the covered panel side and on details with complex shapes.
Its technical characteristics and ergonomics make the Xenia 50X an ideal machine for small and medium-sized artisan companies.
Equipped with an over-hanging control panel, which ensures maximum ease of use and fast programming, the Xenia 50X circular saw is extremely flexible and performing.
- Flexibility: no limits for inclined cuts thanks to the double inclination of the saw blade that allows to process even complex shapes and covered panels.
- Reliability: Sliding system of the carriage on prismatic guides in hardened and rectified steel for a smooth and precise long-lasting sliding.
- Ergonomics: Controls on front side. Ergonomics and ease of use guarantee reduction of time and costs. The mobile control buttons on the head of the carriage are easily accessible and facilitate the use of the machine in any working position.
- Sturdiness: machine frame of notable thickness and solid construction
| XENIA 50X | |
| Max squaring capacity std. | 2250 x 3200 mm |
| Length sliding table std. | 2250 mm |
| Cutting width on parallel fence | 1270 mm |
| Table dimensions | 1000 x 685 mm |
| Max. diam. of saw blade with scoring unit installed | 400 mm |
| Scoring blade diameter | 160 mm |
| Inclination saw blade | -46° ÷ +46° |
| Max. saw blade projection at 90° from table with blade ø 400 mm | 136 mm |
| Max. saw blade projection at +45°/-45° from table with blade ø 400 mm | 97/60 mm |
| Exhaust outlet diameter | 120 mm |
| Blade protection with exhaust outlet diam. | 80 mm |
| Motor power (S6) |
7 kW (9,4 HP) 50 Hz |
| Power scoring motor (S6) |
0,9 kW (1,2 HP) 50 Hz |
Version with max. squaring stroke 2600 mm
Maximum squaring capacity 2600 x 3200 mm
Version with max. squaring stroke 3200 mm
Maximum squaring capacity 3200 x 3200 mm
Version with max. squaring stroke 3800 mm
Maximum squaring capacity 3800 x 3200 mm
