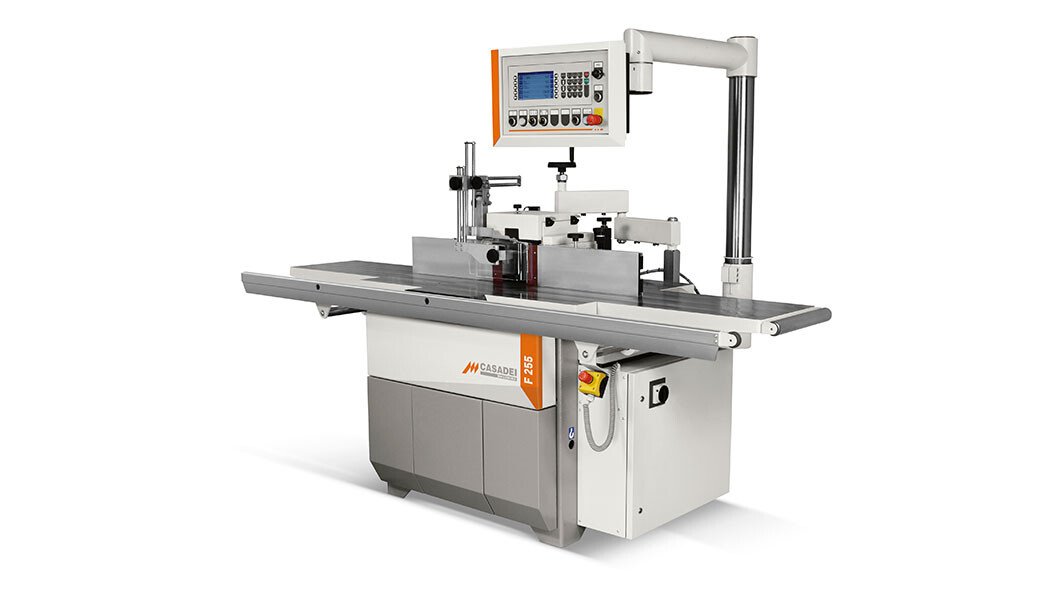

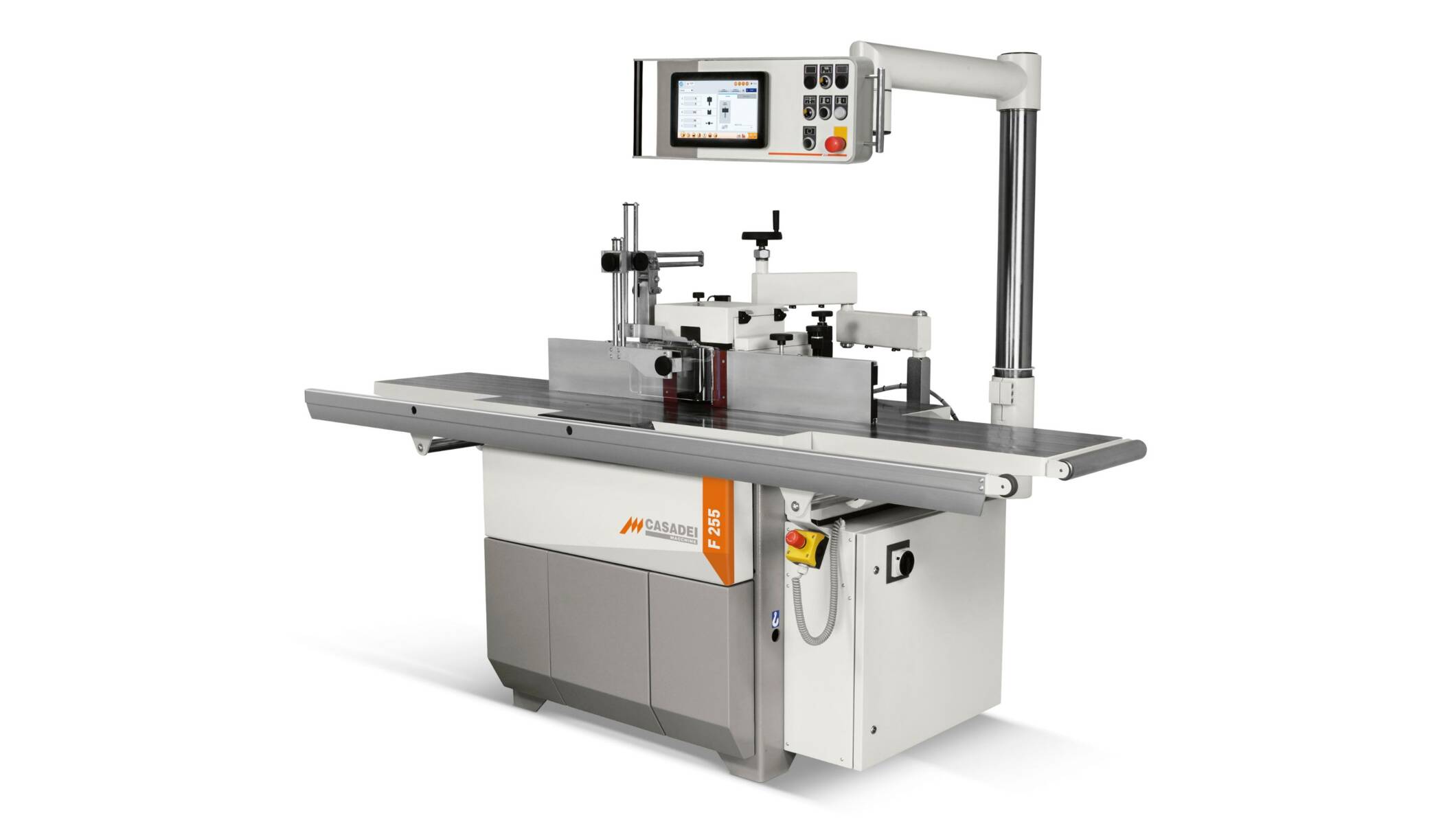

F 255 A

The electrospindle controlled by inverter, the spindle tiltable ± 45,5° and the wide range of options available, make the F 255A spindle moulder suitable for the most demanding users.

Advantages

Flexibility: The numerical control can control all the axes installed on the machine. Electronic programming ensures rapid machine set-ups eliminating the need of test runs. With a few keystrokes stored programs can be recalled or new machining quotas inserted. The wide range of options available, including the HSK version, allow any type of machining.
Sturdiness: Sturdy steel machine structure. Ribbed cast iron worktable which guarantees no vibrations. The electrospindle tilts over two heavy duty cast iron trunnions.

Technical data
  F 255 A
Worktable dimensions 1200 x 780 mm
Spindle tilt ± 45,5°
Spindle diameter, your choice
Ø 30 - 35 mm - 1 ¼"
Ø 40 - 50 mm
version Hsk (opt)

140 mm
160 mm
140 mm
Max. tool diameter when profiling 250 mm
Max. tool diameter when tenoning 300 mm
Motor power (S6) 7,5 kW  / 10 Hp
Media
Documentation
Top_Toupie_IT_ES Download
Top_Toupie_EN_FR Download
Top_Toupie_EN_DE Download
