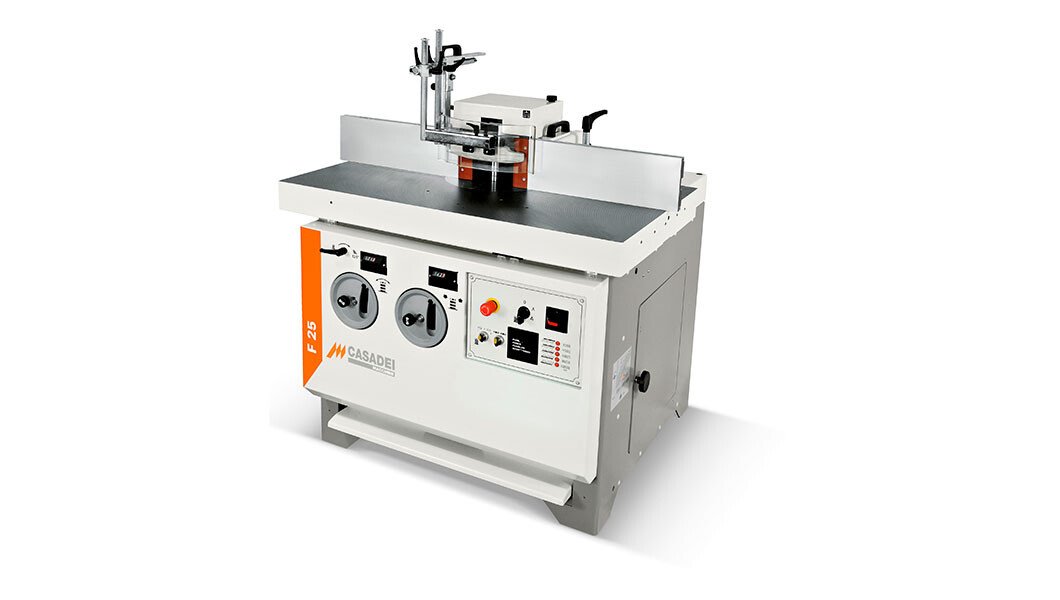

Spindle moulder with fixed and tilting spindle

The F 25 spindle moulder with tilting spindle combines sturdiness, reliability, ergonomics and ease of use.



Flexibility: Spindle moulder fence with movement by handwheel and mechanical digital readouts. Spindle tiltable +/- 45°. The wide range of options available allow any type of machining.
Sturdiness: Sturdy steel machine structure. Ribbed cast iron worktable which guarantees no vibrations.

Technical data

Worktable dimensions 1200 x 810 mm
Spindle rotation speeds rpm 3000-4500-6000-8000-10.000
Spindle tilt +/- 45°
Max. tool diameter when profiling 250 mm
Max. tool diameter when tenoning 320 mm
Motor power at 50 Hz  5 kW / 7 Hp
Motor power at 60 Hz  6 kW / 8 Hp



Related products

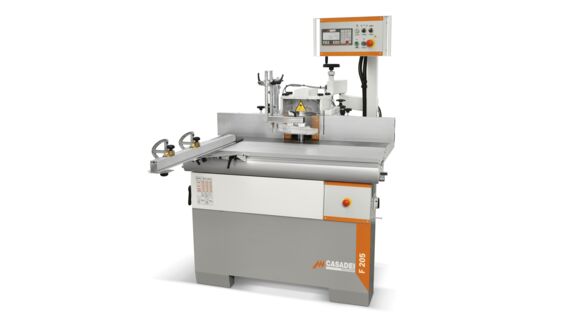

F 205

The F 205 spindle moulders are very sturdy machines with an excellent construction quality.

Find out

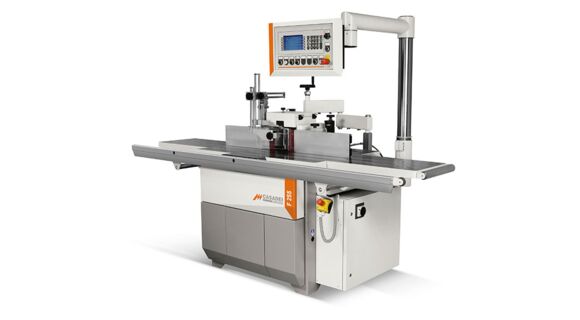

F 255 A
