F 205

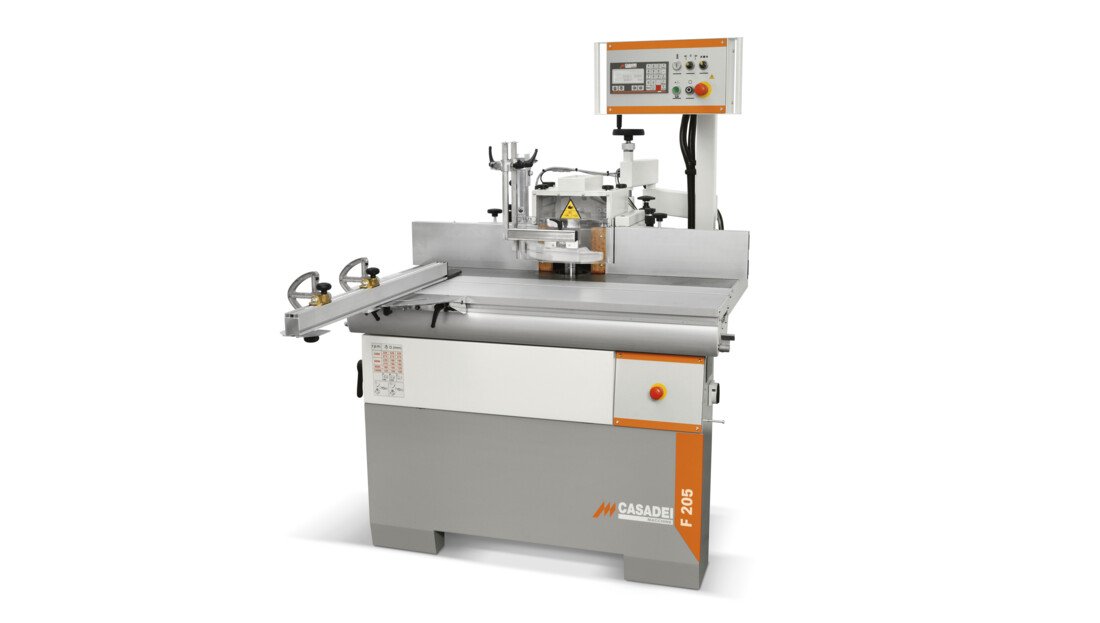

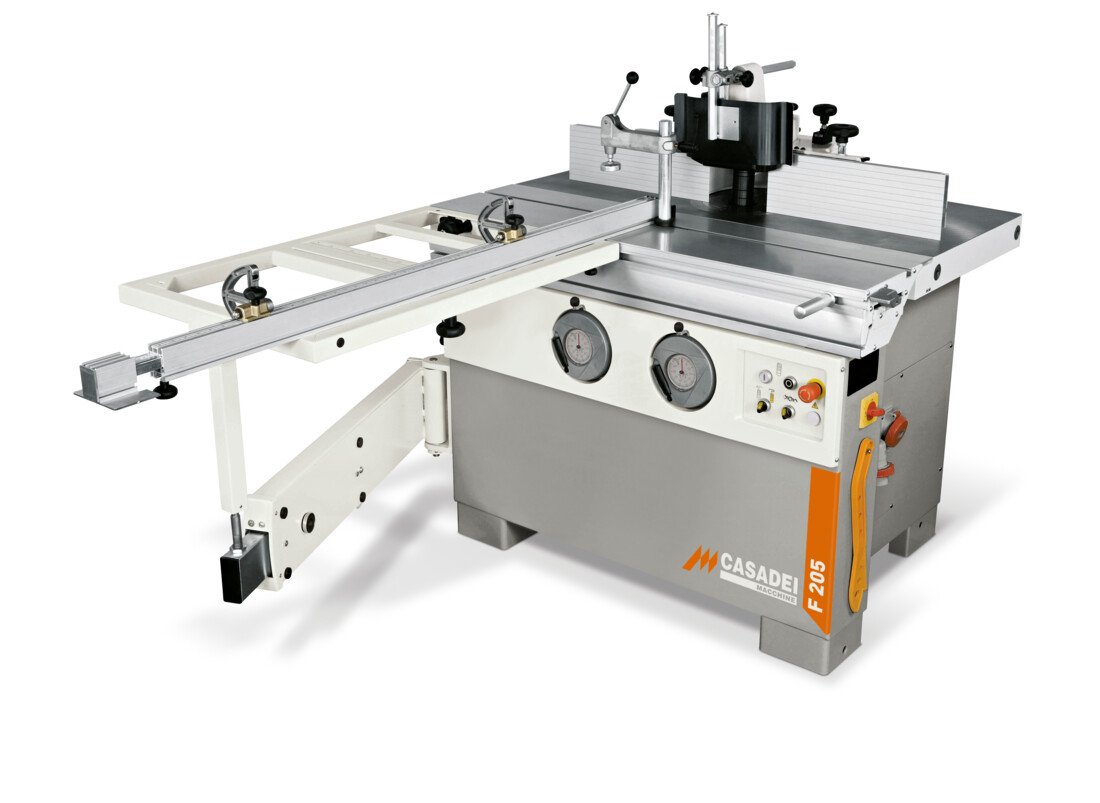

The F 205 spindle moulder is characterized by heavy sturdiness and excellent construction quality. Available in versions with sliding table or fixed table.
Flexibility: The spindle moulder guide with three linear movements with a mechanical micrometric numeric readout and repositioning memory, allowing machine adjustment without trial runs: the first piece is already perfect! The carriage, equipped with prismatic steel guides and balls bearings, enables the machine to be used for both tenoning and profiling large workpieces.
The machine can be equipped with the FOX 100 numerical control, which manages the lifting, tilting, and automatic positioning of the spindle moulder guide based on the tool diameter.
Sturdiness: Spindle moulder unit made of cast iron with a heavy-duty structure, tiltable on two sturdy precision cast iron trunnions.
|
F 205 |
F 205 P |
|
|
Sliding table dimensions |
1200x360 mm |
|
|
Table dimensions (machine with sliding table) |
1200x530 mm |
|
|
Table dimensions |
1200x855 mm |
|
|
Table dimensions with extensions in cast iron |
2540x855 mm |
|
|
Spindle moulder speeds at 50 Hz |
3500-6000 8000-10000 rpm |
|
|
Max. spindle working height |
125 (70 if ¾") mm |
|
|
Max. profiling tool diameter |
Ø 240 mm |
|
|
Max. diameter of tool lowered under table at 90° |
Ø240 mm |
|
|
Main motor power |
5 kW (6,6 HP) 50 Hz 6 kW (8 HP) 60 Hz |
|
|
Spindle moulder diameter |
30 – 32*- 35 - 40 – 50 mm 1 - 1 ¼" |
|
* only with fixed spindle without slot
