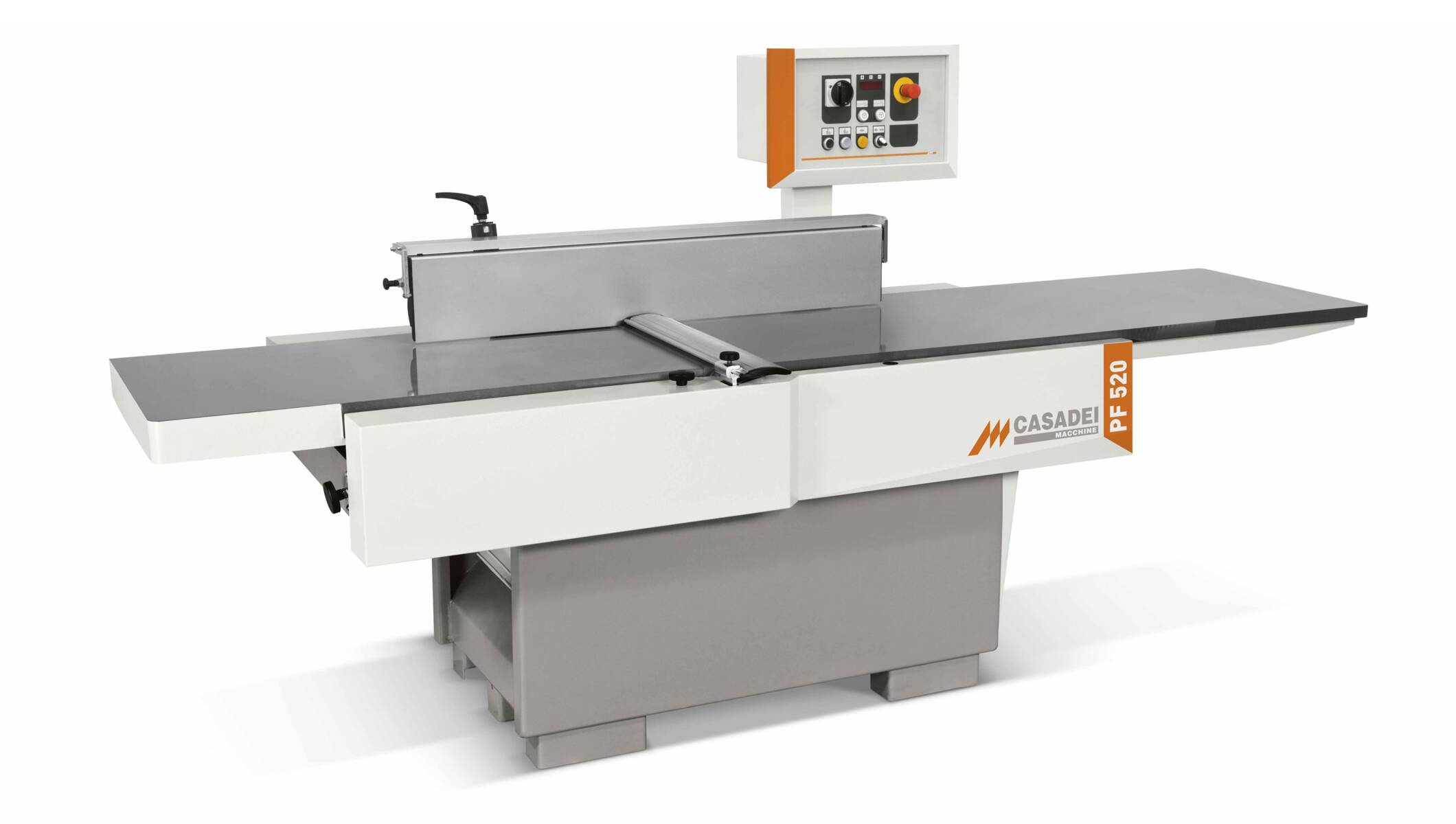

PF 520 M

The PF 520 M surface planer has been designed to meet the requirements of carpenters and the most advanced companies.

Advantages
  • Ryability: The worktables can be adjusted by means of parallelogram shaped connecting rods which allow perfect parallel adjustment of the tables and guarantees a constant distance between these and the cutter block, at any cutting depth. This solution eliminates machining defects caused by vibrations, even with heavy stock removal.
  • Flexibility: The ribbed, cast iron worktables are precision ground for a perfect finish and to facilitate stock feed. The long worktables allow perfect straightening of very long parts. The planing fence tiltable 90° - 45° allows various types of machinings. Powered adjustment of the infeed table.
  • Ergonomics: Ergonomically positioned control panel, easily accessible by the operator.
Technical data
  PF 520 M
Total length of surface tables 3000 mm
Useful working width 520 mm
Max. stock removal 8 mm
Planing fence tiltable 90°÷45° 1100x160 mm
Cutterblock diameter 120 mm
no. knives 4
Motor power a 50 Hz  5 kW / 7 Hp
Motor power at 60 Hz  6 kW / 8 Hp
