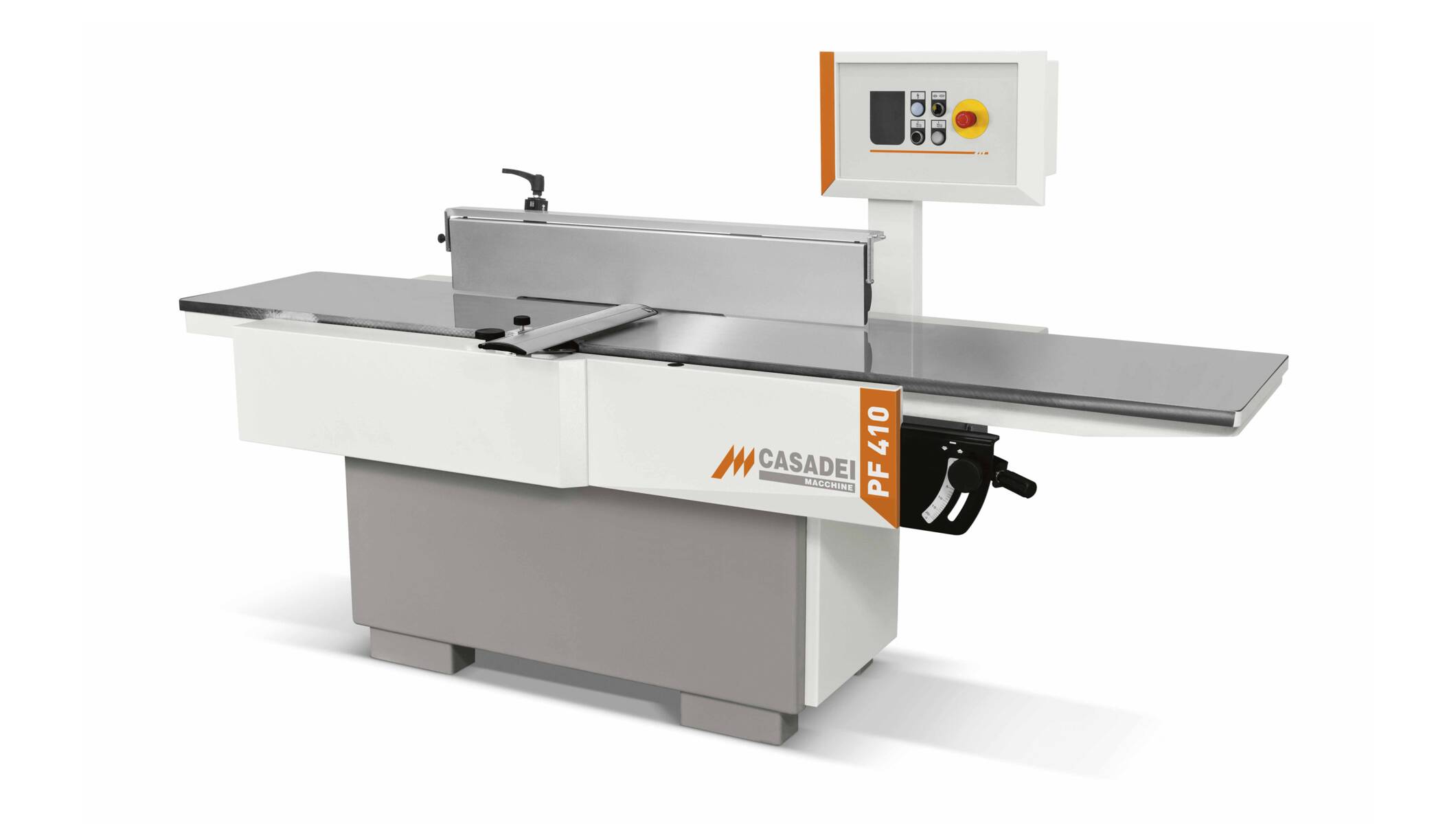

PF 410

The PF 410 surface planer has been designed to meet the requirements of carpenters and the most advanced companies.

Advantages

Reliability: The worktables can be adjusted by means of parallelogram shaped connecting rods which allow perfect parallel adjustment of the tables and guarantees a constant distance between these and the cutter block, at any cutting depth. This solution eliminates machining defects caused by vibrations, even with heavy stock removal.
Flexibility: The ribbed, cast iron worktables are precision ground for a perfect finish and to facilitate stock feed. The long worktables allow perfect straightening of very long parts.
Ergonomics: Ergonomically positioned control panel, easily accessible by the operator.

Technical data
  PF 410
Total length of surface tables 2600 mm
Useful working width 410 mm
Max. stock removal 8 mm
Planing fence tiltable 90°÷45° 1100 x 160 mm
Cutterblock diameter 120 mm
No. knives 4
Motor power at 50 Hz  5 kW / 7 Hp
Motor power at 60 Hz 6 kW / 8 Hp
