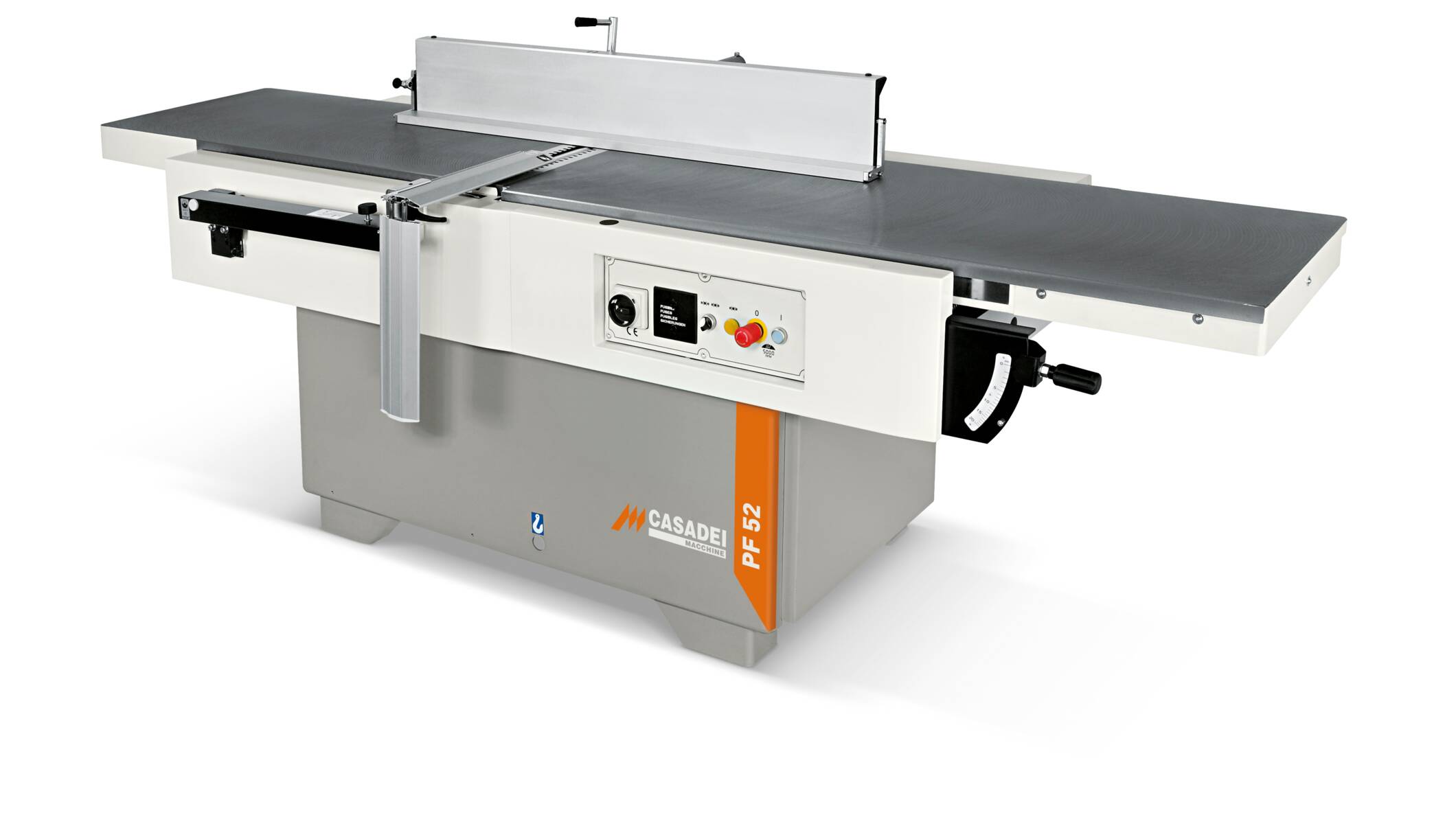

Surface planer
PF 52
The PF 52 surface planer meets the requirements of carpenters and the most demanding companies.
Advantages
Reliability: The worktables can be adjusted by means of parallelogram shaped connecting rods which allow perfect parallel adjustment of the tables and guarantees a constant distance between these and the cutter block, at any cutting depth. This solution eliminates machining defects caused by vibrations, even with heavy stock removal.
Flexibility: The very long, ribbed, cast iron worktables allow perfect straightening of very long parts. Tiltable planing fence for any type of machining.
Ergonomics: Ergonomically positioned control panel at the front of the machine, easily accessible by the operator.
Technical data
| Cutter block diameter/no. knives | 120/4 mm |
| Max. stock removal | 8 mm |
| Useful working width | 520 mm |
| Total length of surface tables | 2720 mm |
| Planing fence tiltable 90°÷45° | 1200 x 190 mm |
| Motor power at 50 Hz | 5 kW / 7 Hp |
| Motor power at 60 Hz | 6 kW / 8 Hp |
