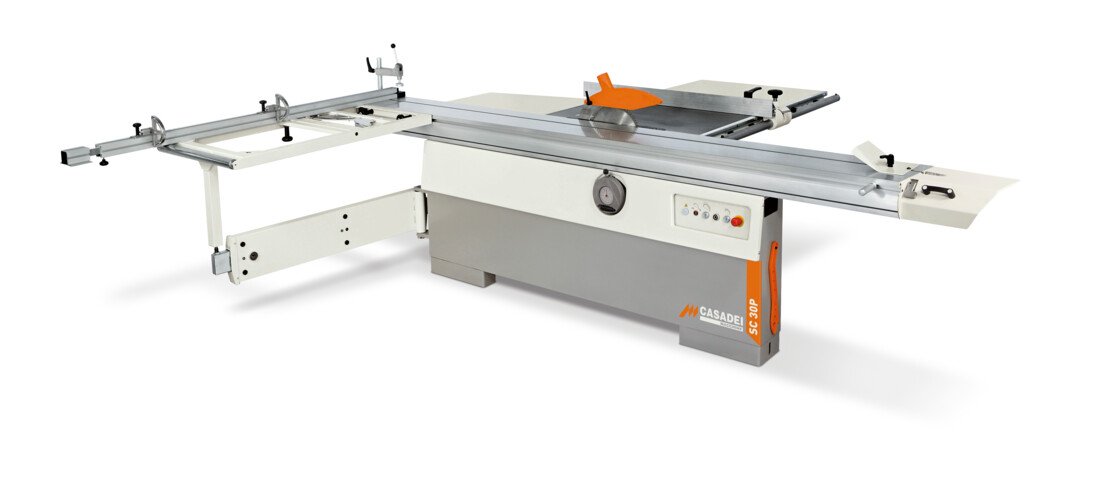

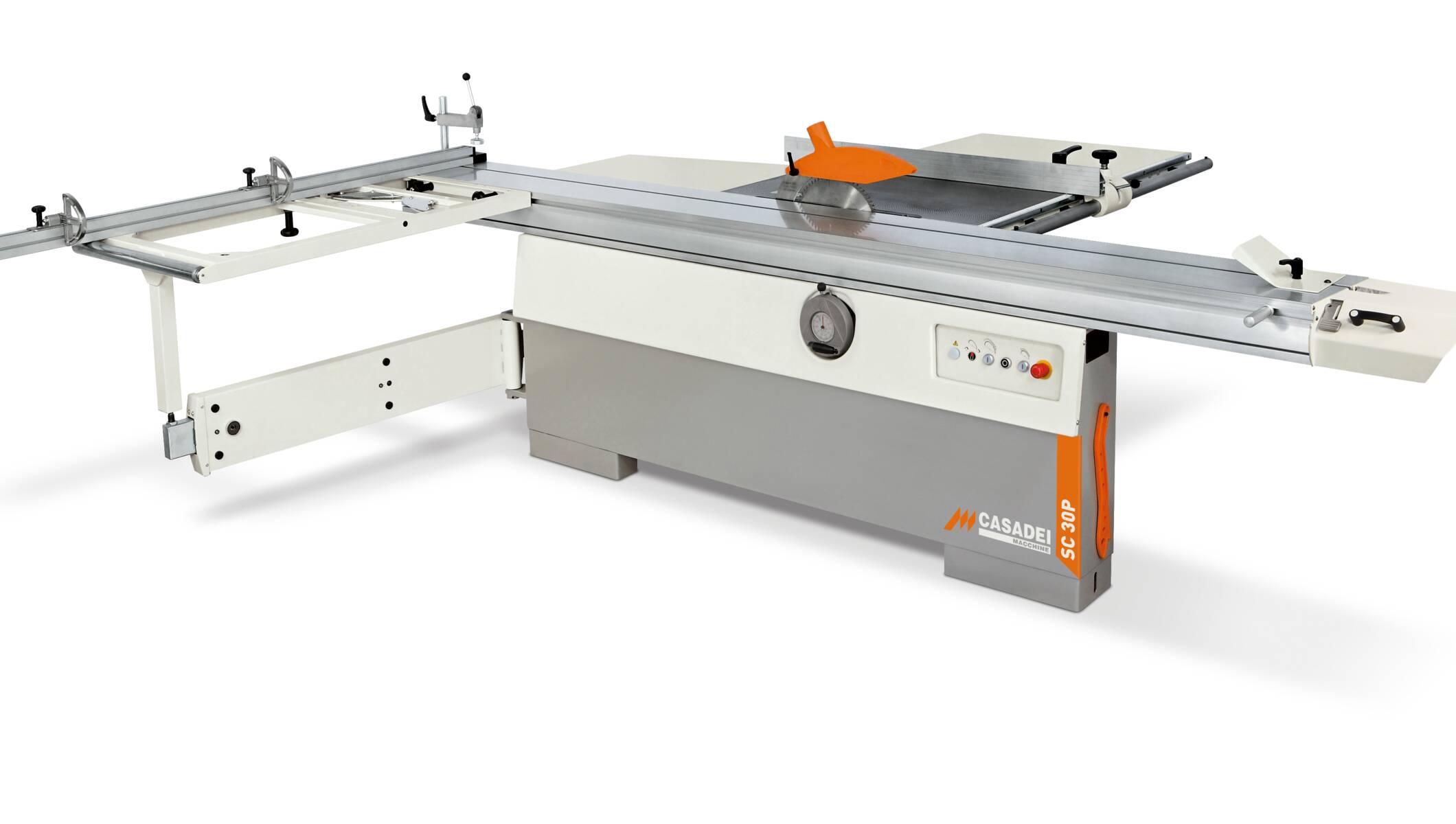

SC 30 P / SC 40 P
The SC 30 P and SC 40 P panel sizing circular saws have been designed to satisfy the most demanding customers.
Reliability: Sliding system consisting of hardened steel prismatic guideways and preloaded ball bearings. Precision, smooth running and absence of maintenance are unique features of the CASADEI sliding table system .
Flexibility: Independent scoring unit as part of the standard equipment of the machine, and a wide range of options.
Sturdiness: Heavy duty cast iron saw unit with vertical raise & fall of the main blade over a precise dove-tail system. Tilting system over robust steel trunnions.
Technical data
| SC 30 P | SC 40 P | |
| Max. squaring stroke |
2600 mm |
|
| Standard cutting width on rip fence | 1270 mm | |
| Fixed table dimensions |
940 x 560 mm |
|
| Max. diameter of saw blade with scoring unit installed | 315 mm | 400 mm |
| Max. saw blade projection at 90° with blade | ø 315 mm 100 mm ø 300 mm 93 mm ø 250 mm 68 mm |
ø 400 mm 136 mm |
| Max. saw blade projection at 45° with blade | ø 315 mm 71 mm ø 300 mm 66 mm ø 250 mm 49 mm |
ø 400 mm 97 mm |
| Saw blade tilting | 90° ÷ 45° | |
| Motor power at 50 Hz | 5 kW / 6,6 Hp | |
| Motor power at 60 Hz | 6 kW / 8 Hp | |
