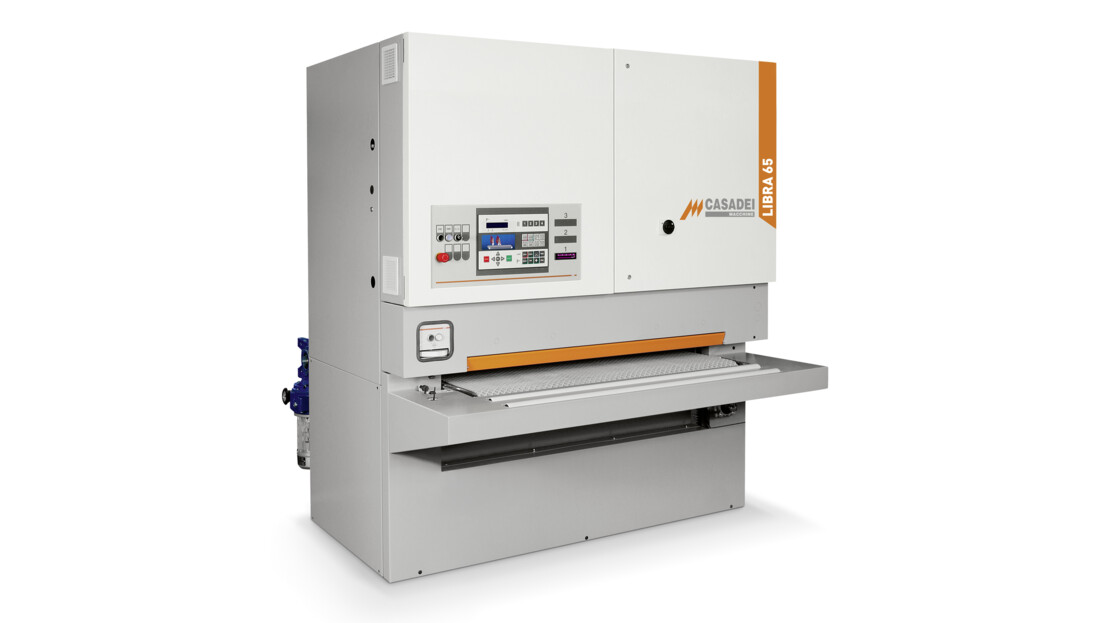

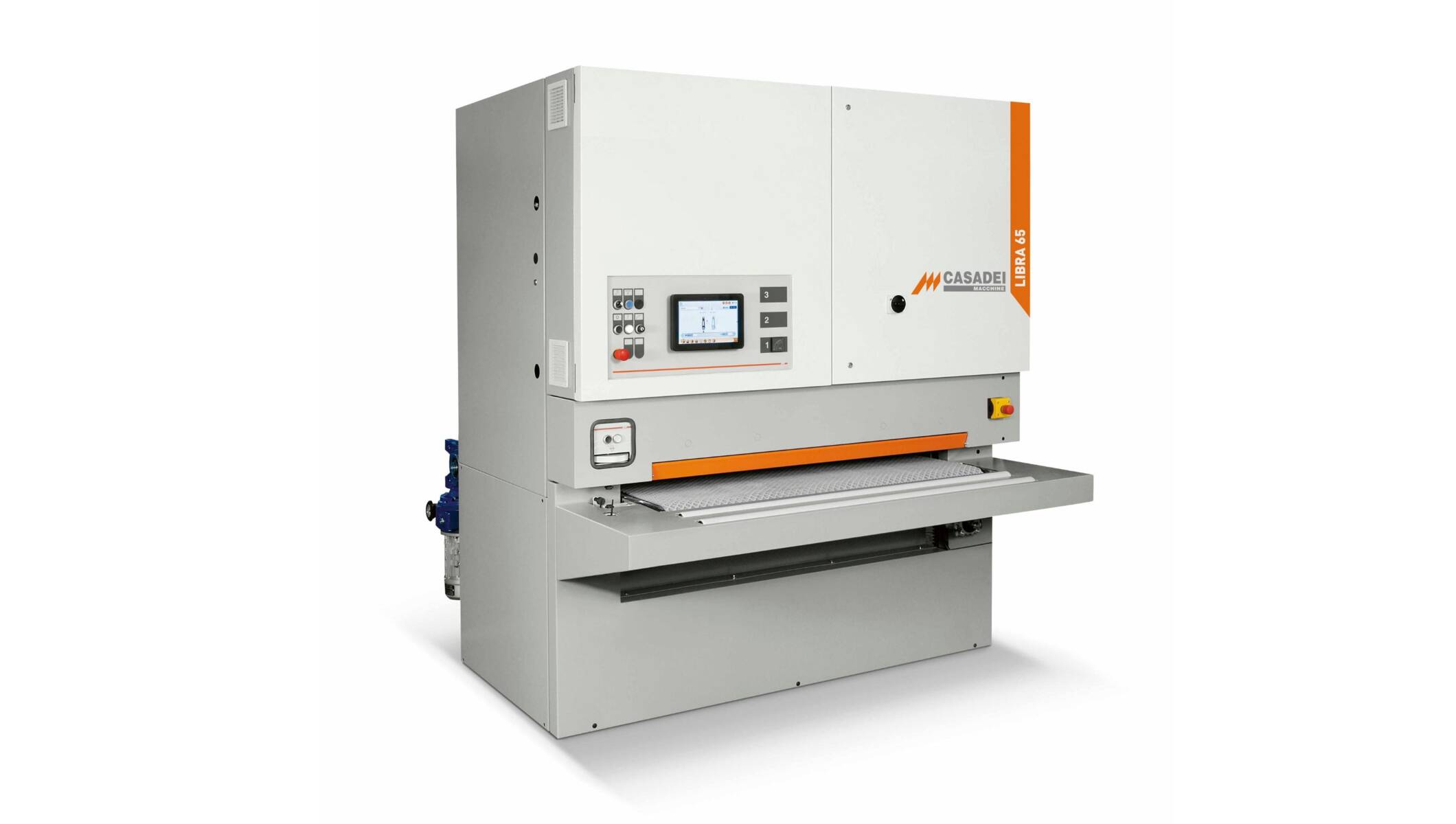

LIBRA 65

The Libra 65 is a machine designed for the large industry which requires a high quality finish and high production rates.

Advantages

Reliability: The 2620 mm belt length allows an efficient cooling, thereby prolonging the life of the belt, and guarantees a perfect finish.
Flexibility: The flexibility in machine configuration is guaranteed by the wide range of options available which allows the machine to be adapted to suit the various machining requirements. Amongst the options available for the LIBRA 65 there are the super-fnishing unit, the segments platens, the planer unit to sand solid wood with large stock removal and the worktable with a fixed height from the floor to insert the machine in a production line.
Sturdiness: A very rigid machine frame with tubular structure made using a robotic welding system.



  •
Technical data
  LIBRA 65
Useful working width 1350 mm
Working height 4 ÷ 170 mm
Width sanding belt 1370 mm
Length sanding belt 2620 mm
2 feed speeds

4,5-9 m/min

Power main motor 15 kW (20 Hp)
Power feeding motor with 2 operating units  0,45/0,8 Kw (0,6/1,1 Hp)
Power feeding motor with 3 operating units  0,6/3 Kw (1,8/1,7 Hp)
Media
Documentation
Libra_IT_ES Download
Libra_EN_FR Download
Libra_EN_DE Download
