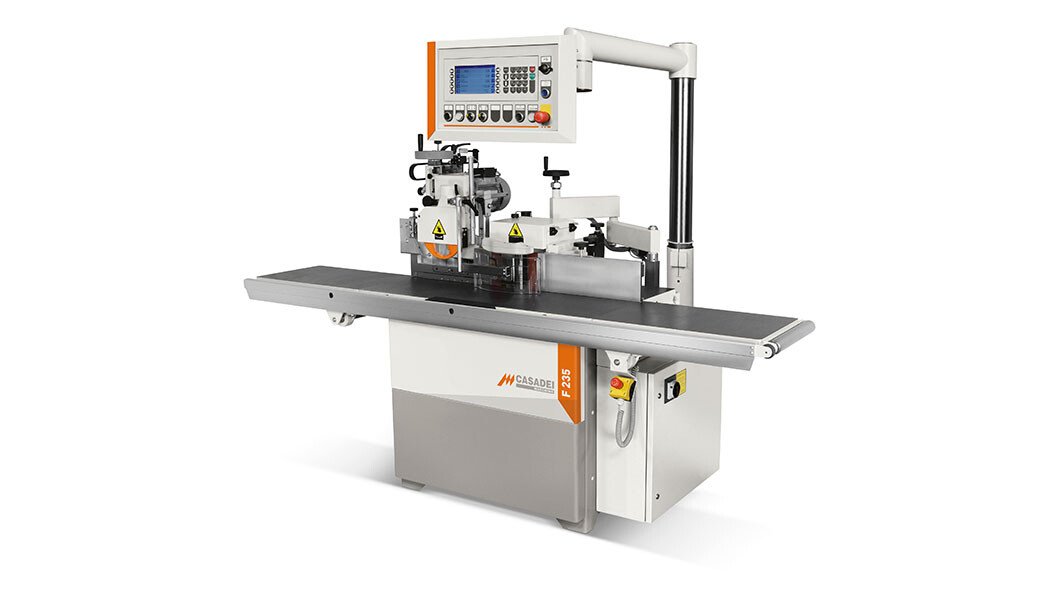

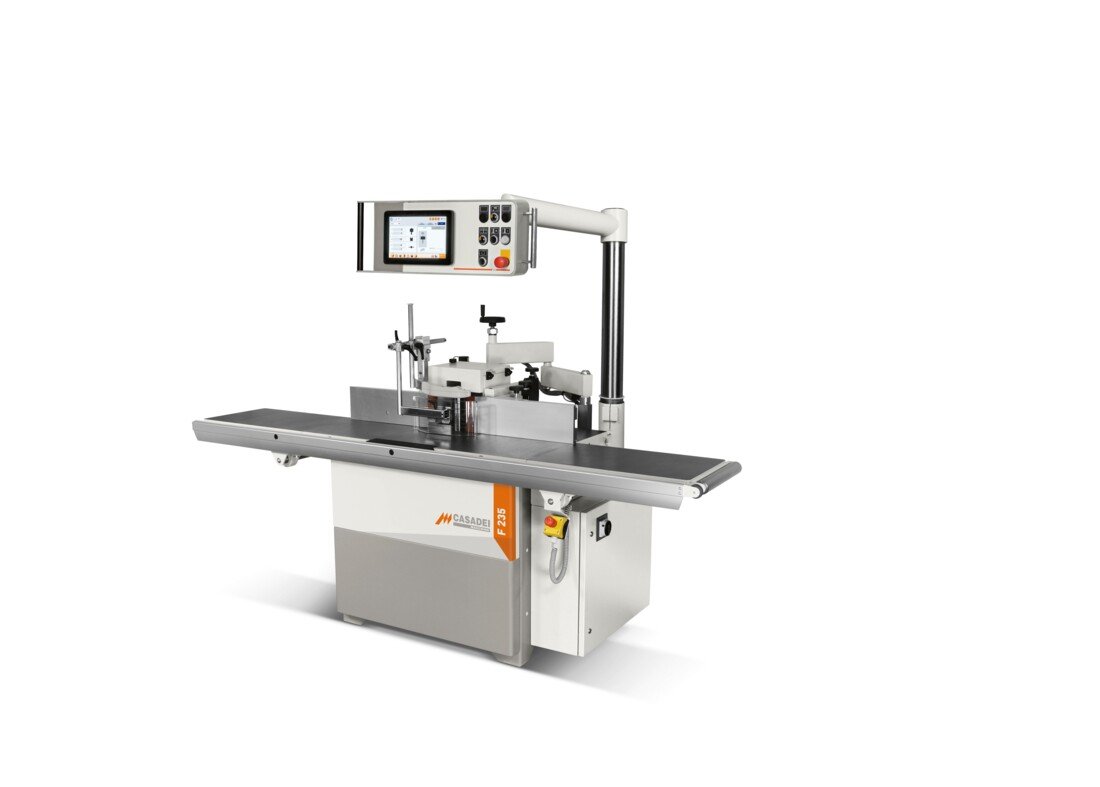

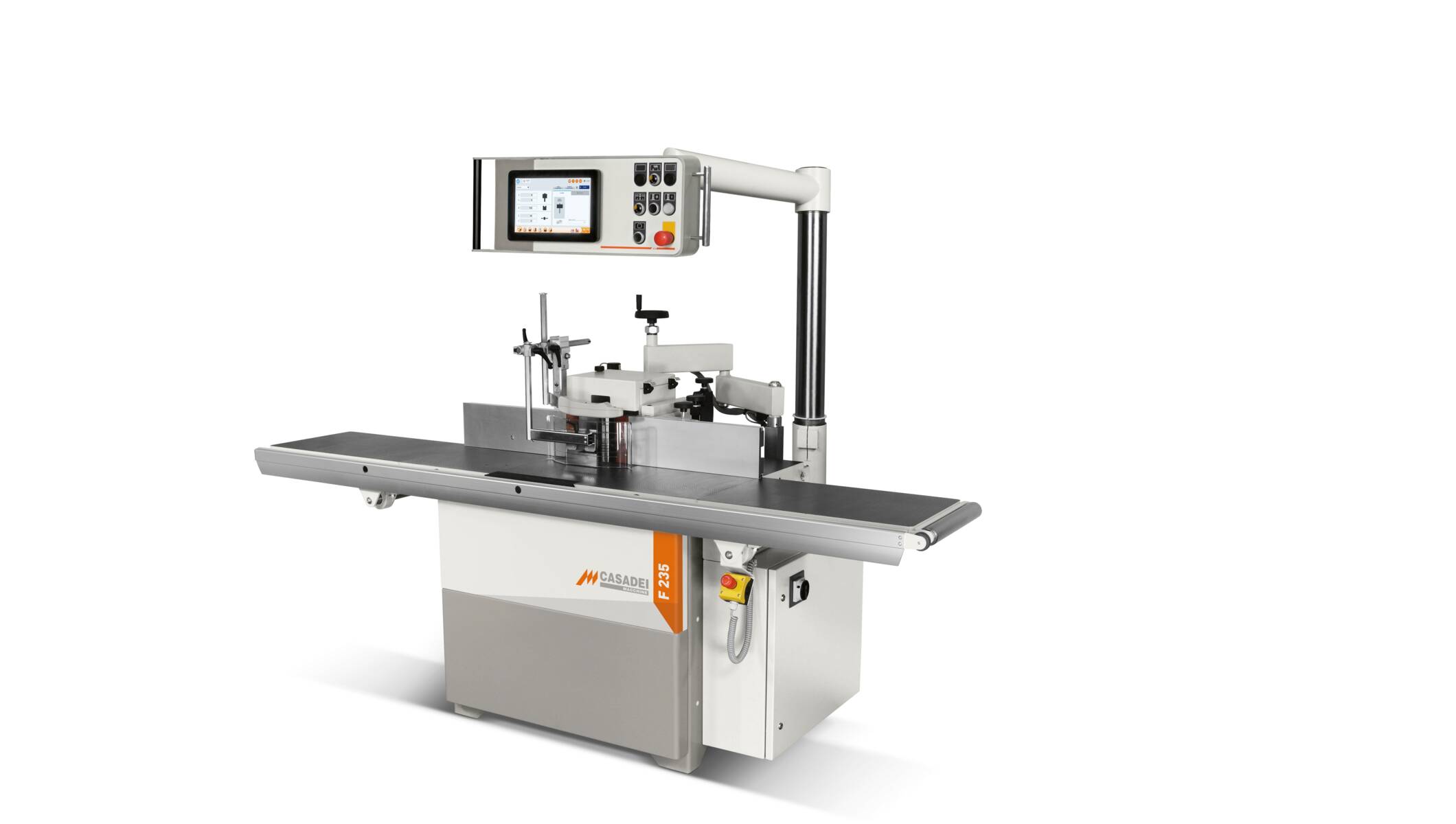

F 235 A

The complete standard configuration and the wide choice of options available make the F 235A a spindle moulder suitable for the most demanding users.

Advantages
  • Flexibility: The numerical control can control all the axes installed on the machine. Electronic programming ensures rapid machine set-ups eliminating the need of test runs. With a few keystrokes stored programs can be recalled or new machining quotas inserted. The wide range of options available, including the HSK version, allow any type of machining.
  • Sturdiness: Sturdy steel machine structure. Ribbed cast iron worktable which guarantees no vibrations.
Technical data
  F 235 A
Worktable dimensions 1200 x 730 mm
Useful spindle height
Ø 30 - 35 mm - 1" ¼
Ø 40 - 50 mm
Version Hsk (opt)
MK5 interchangeable spindle (opt)
Ø 30 - 35 mm - 1" ¼
Ø 40 - 50 mm

140 mm
180 mm
140 mm

140 mm
160 mm
Motor power (S6) a 50 Hz  7 kW / 9,5 Hp
Motor power (S6) a 60 Hz  8 kW / 11 Hp
Documentation
Top_Toupie_IT_ES Download
Top_Toupie_EN_FR Download
Top_Toupie_EN_DE Download
