PS 63

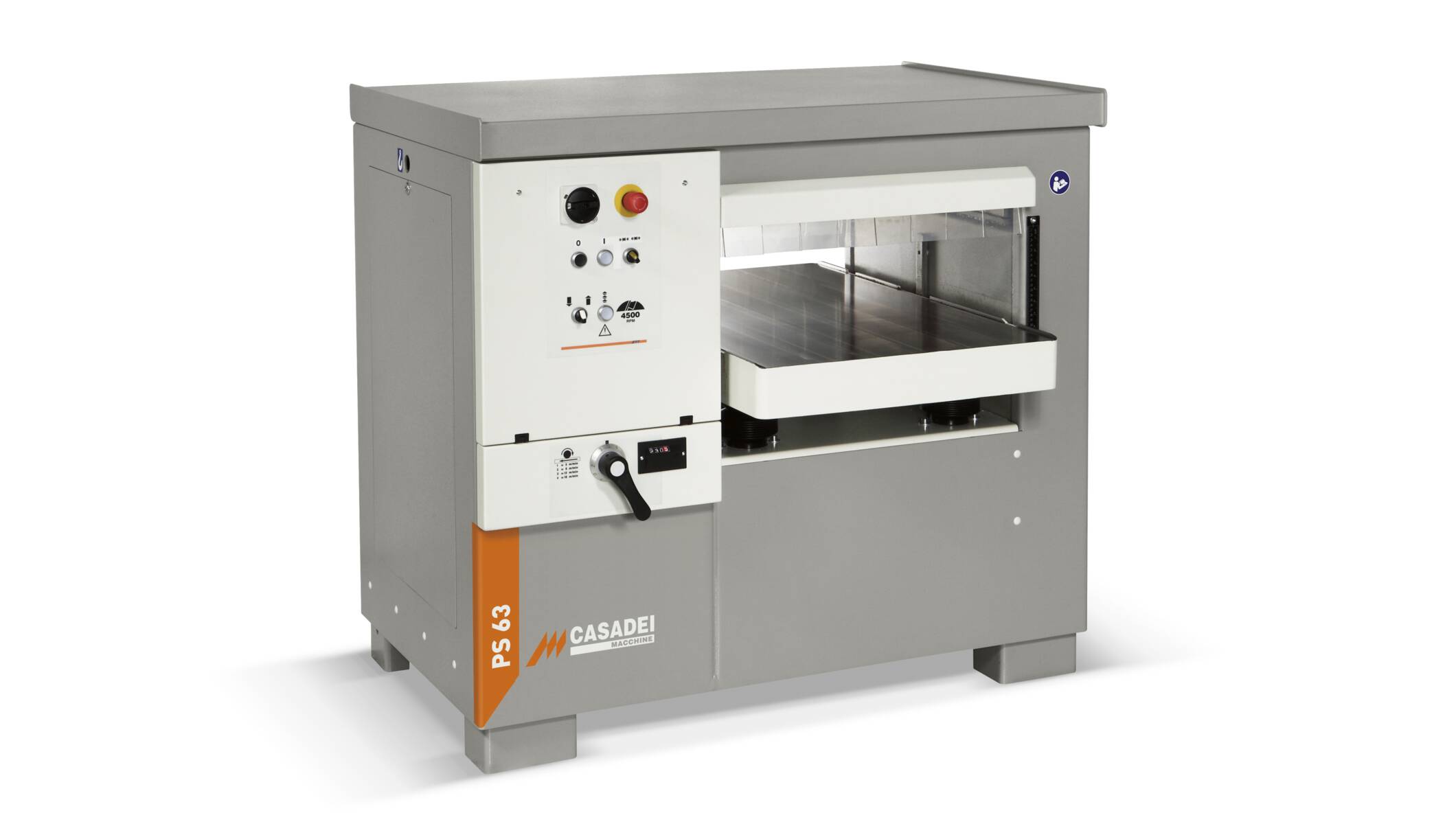

PS 63 - Casadei Busellato

The PS 63 thicknessing planer has been designed to satisfy the most demanding craftsmen and companies.

Advantages

Sturdiness: Machine frame of notable thickness and solid construction. Ground cast iron thicknessing table with micrometric adjustment of raise & fall by 4 steel screws protected against dust by bellows.
Reliability: Feed rollers mounted on independent floating ball bearing bushes. Planer unit with infeed anti-kickback fingers and segmented chipbreakers.
Flexibility: The standard equipment and the wide range of options available allow any type of machining.

Technical data
  PS 63
Thicknessing table dimensions 640 x 1000 mm
Working width 630 mm
Max. stock removal 8 mm
Cutterblock diameter 120 mm
No. knives 4
Feed speeds 5/8/12/18 m/min
Min./Max. working height 3,5/300 mm
Motor power at 50 Hz 7 kW / 9,5 Hp
Motor power at 60 Hz  8 kW / 11 Hp
Documentation
Plus_IT_ES Download
Plus_EN_FR Download
PLUS_EN_DE Download
