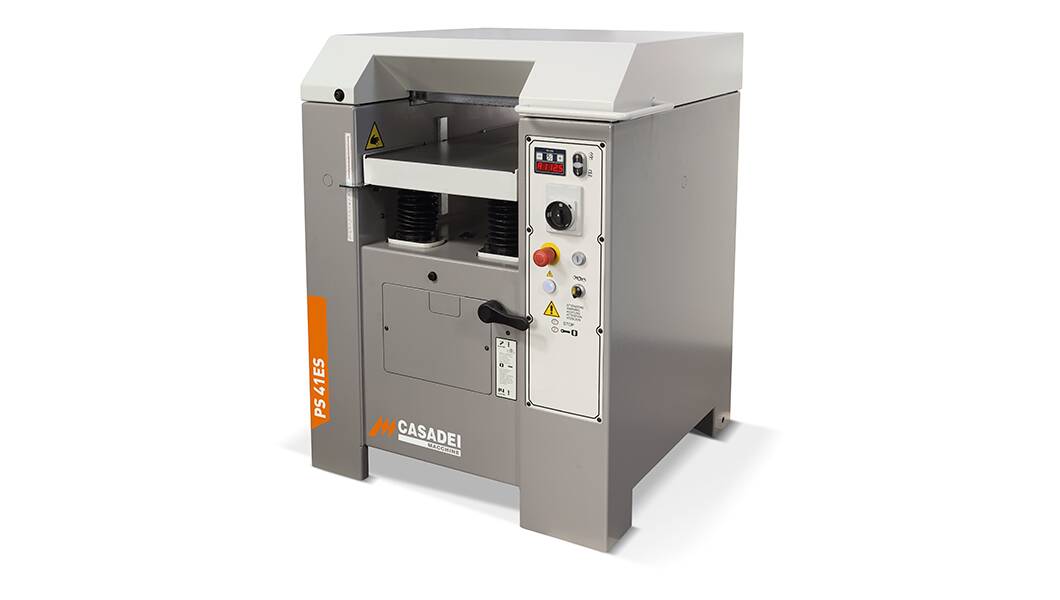

Thicknessing planer

PS 41 ES

The PS 41 ES thicknessing planer has been designed with the typical features of Casadei machines - sturdiness, reliability and ease of use.

+

Advantages

Reliability: Thicknessing table lifted by 4 robust raising screws protected against dust by bellows.
Flexibility: Two feed speeds with rollers' adjustable pressure.
Sturdiness: Steel cutterblock with 4 knives. Infeed steel roller with helical gearing to facilitate introduction of parts.



Technical data

Max. working width 410 mm
Max. stock removal 5 mm
Cutterblock diameter 95 mm
No. of knives 4
Min./Max. working height 3,5 / 240 mm
Motor power at 50 Hz  5 kW / 6,6 Hp
Motor power at 60 Hz 6 kW / 8 Hp
