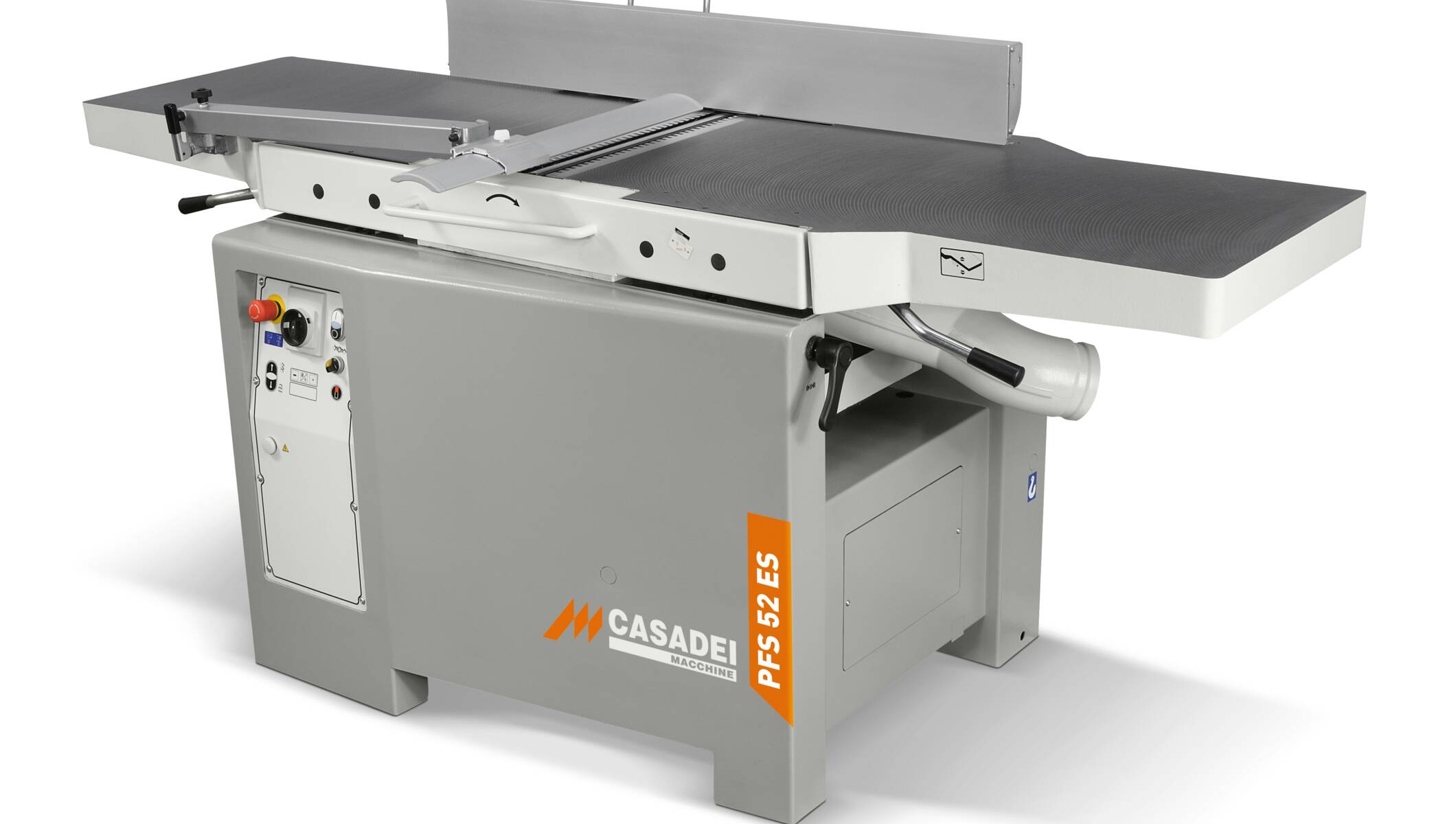

PFS 52 ES

The PFS 52 ES combined surface/thickness planer has been desiged to satisfy the most demanding users and is characterized by its sturdiness and excellent construction quality.

Advantages

Sturdiness: the machine is equipped with very long, ribbed, cast iron surface tables to obtain perfect straightening of very long parts.  The large sized surface fence tiltable 90° - 45° with sliding on round steel bar guarantees perfect results.
Reliability: the planing unit is equipped with a steel cutterblock with 4 knives.
Flexibility: thanks to the quick changeover system, changeover from surfacer to thicknesser requires just a few seconds.

Technical data
  PFS 52 ES
SURFACE PLANER
Maximum working width 520 mm
Total length of surface tables 2250 mm
THICKNESS PLANER
Maximum working width 520 mm
Thicknessing table dimensions 520 x 850 mm
Min./max. working height on thicknesser 3/240 mm
GENERAL FEATURES
Motor power 7 kW / 9,5 Hp 50 Hz
8 kW / 10 Hp 60 Hz
Maximum cutting depth surface/thickness 5 mm
Documentation
Combination Machines_EN_FR Download
Combination Machines_EN_DE Download
Combination Machines_IT_ES Download
