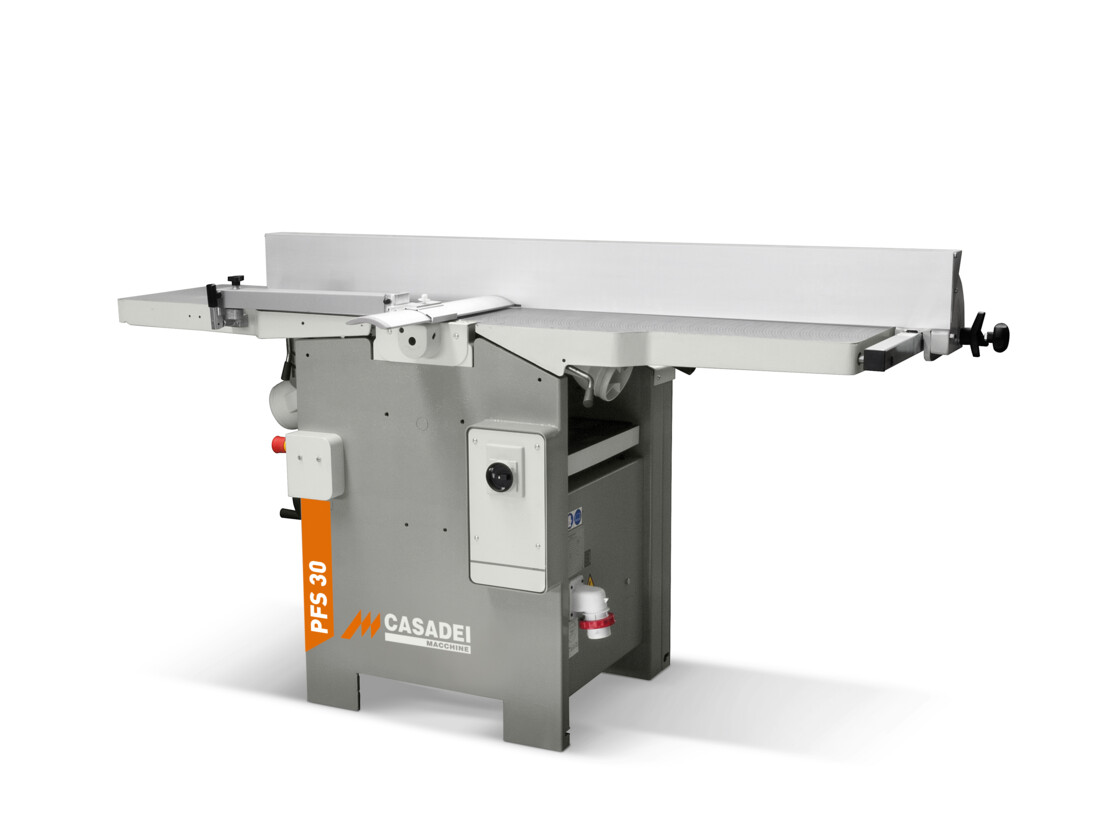

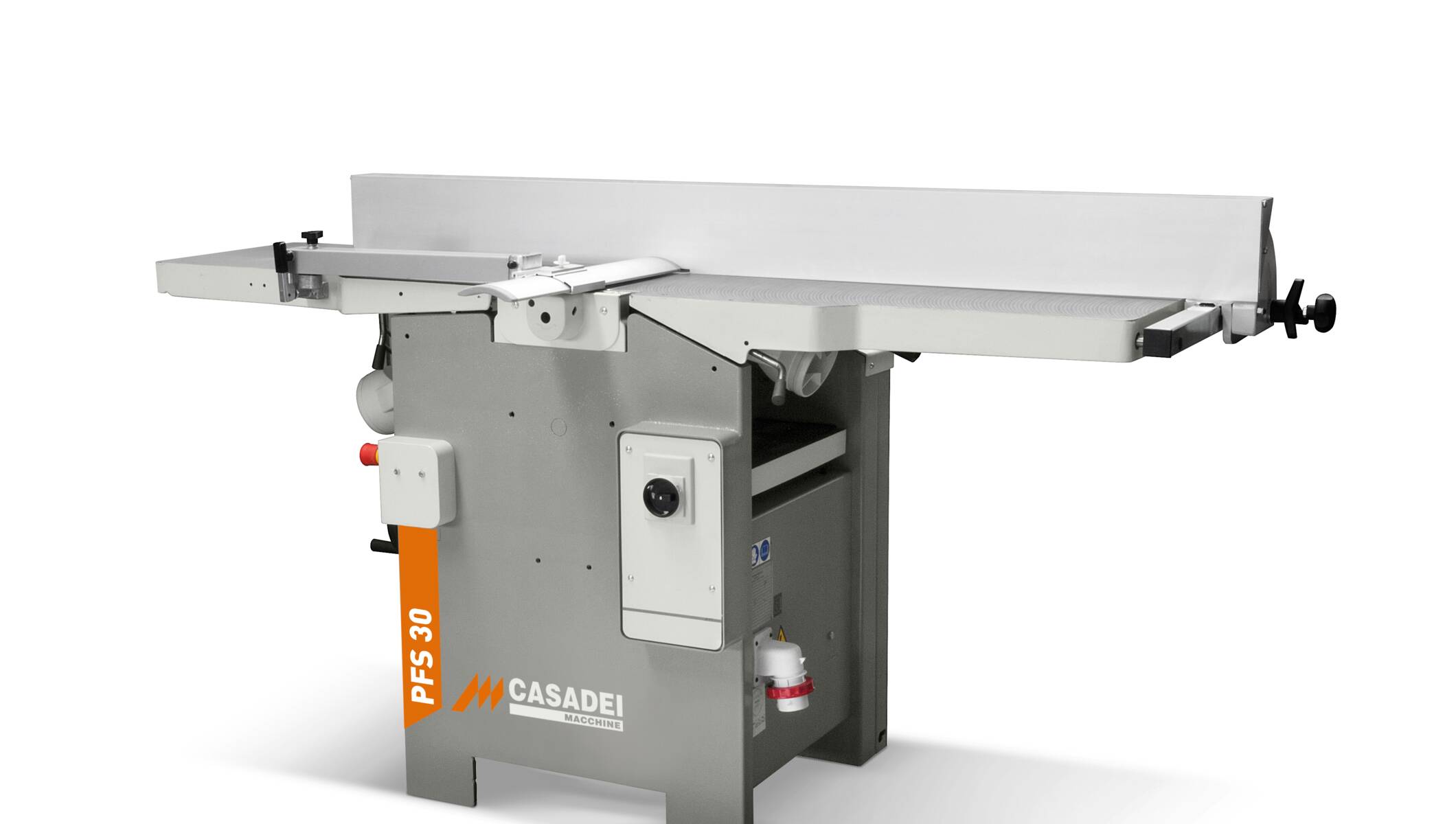

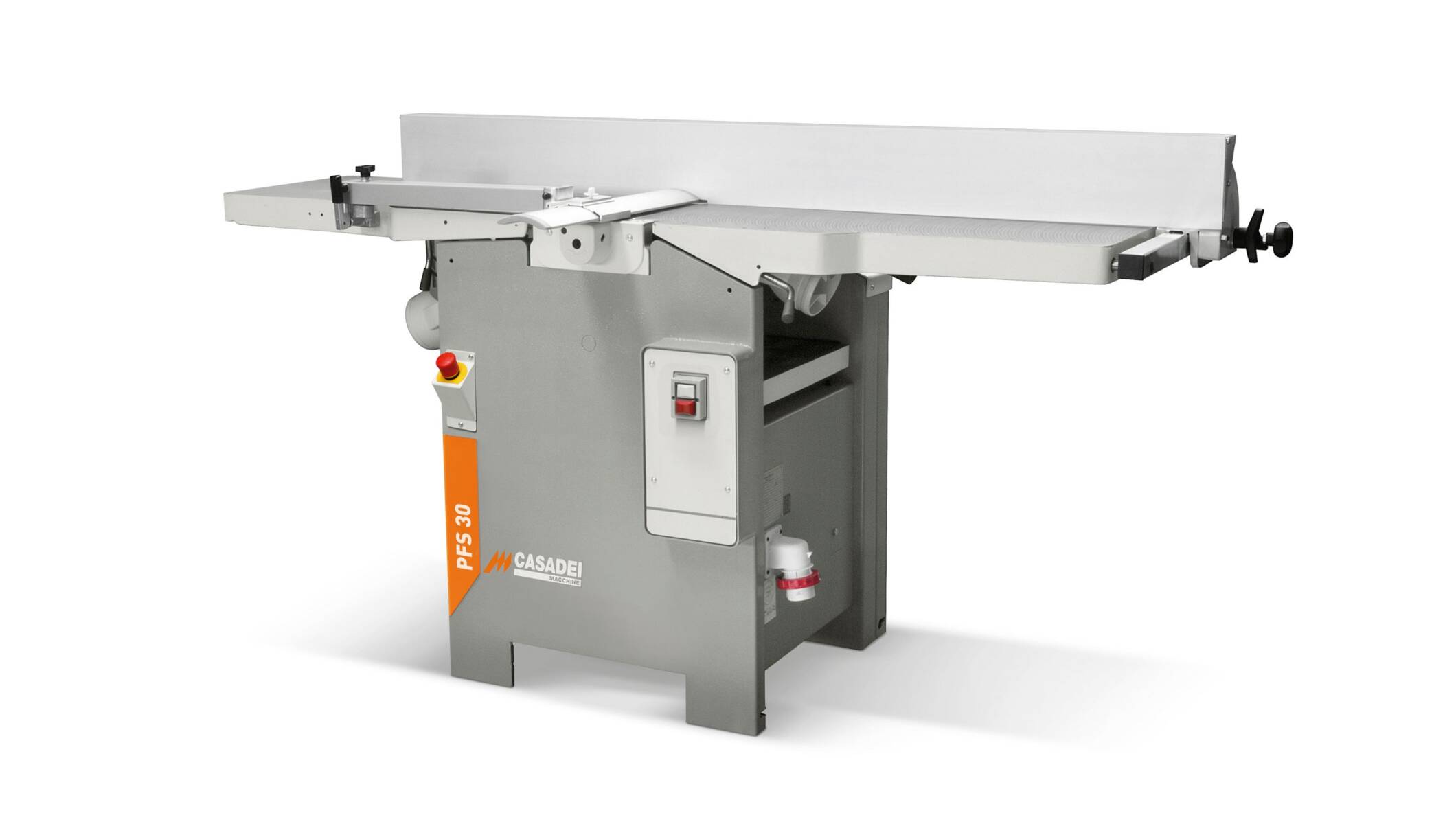

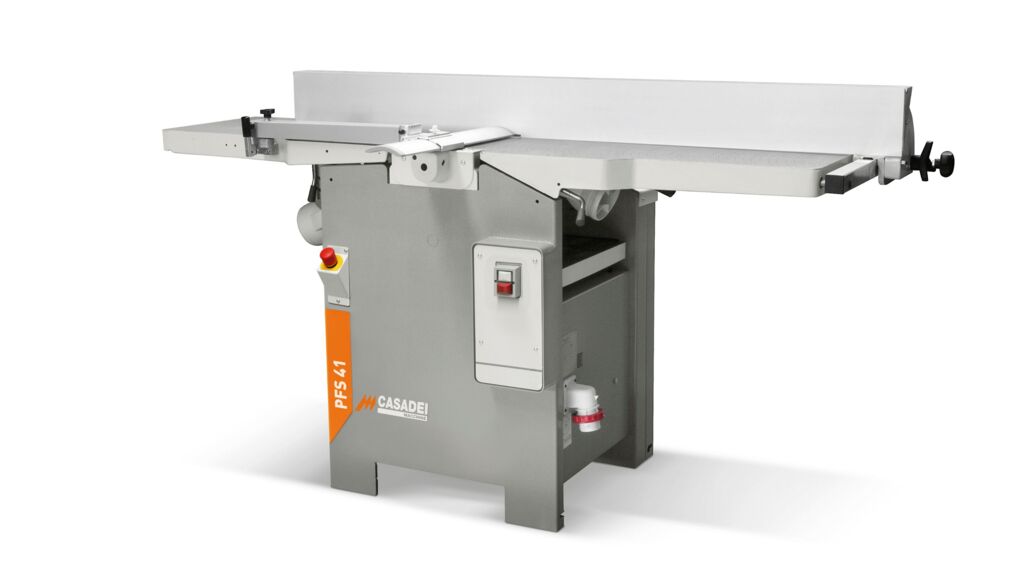

PFS 30 / PFS 41

The PFS 30 and PFS 41 combined surface thickness/planers are very sturdy and of excellent construction quality.

Advantages

Sturdiness: the heavily ribbed, large sized cast iron worktables together with the large, strong surface fence, allow even large sized panels to be precision machined easily.
Reliability: steel cutterblock with 3 knives. The infeed steel roller has helical gearing to facilitate introduction of parts. Adjustable feed roller pressure.

Technical data
  PFS 30 PFS 41
SURFACE PLANER
Maximum working width 300 mm 410 mm
Total length of surface tables 1510 mm 1800 mm
THICKNESSING PLANER
Maximum working width 300 mm 410 mm
Thicknessing table dimensions 585 x 300 mm  605 x 410 mm
Min./max. working height 3,5/230 mm  3,5/230 mm
GENERAL FEATURES
3-phase motor

4 kW / 5,5 Hp 50 Hz

4,8 kW / 6,5 Hp 60 Hz

4 kW / 5,5 Hp 50 Hz

4,8 kW / 6,5 Hp 60 Hz

Documentation
Combination Machines_EN_FR Download
Combination Machines_EN_DE Download
Combination Machines_IT_ES Download
