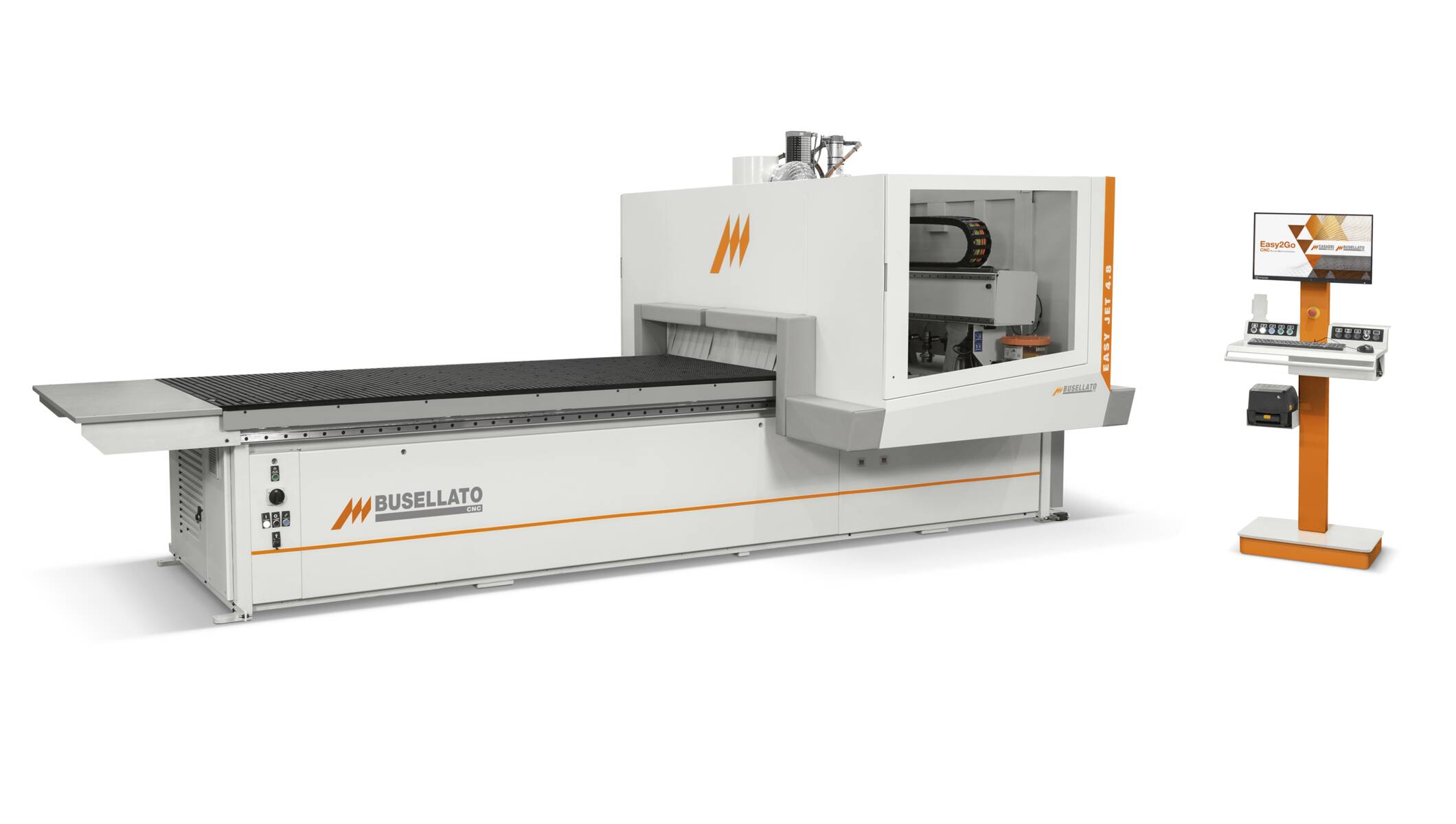

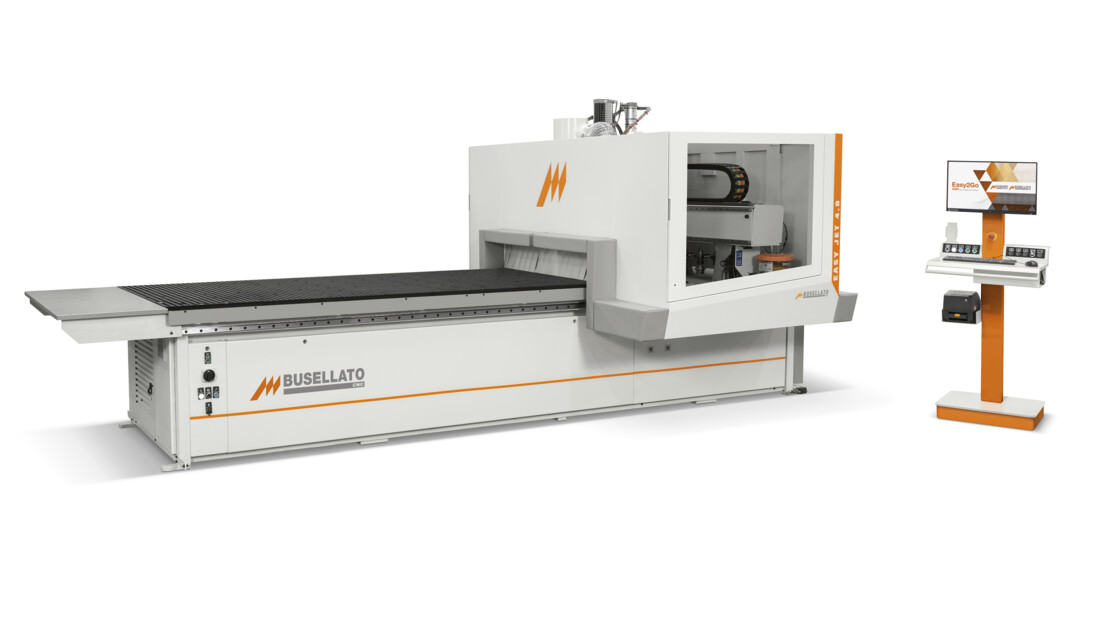

EASY JET

The EASY JET working centers have been designed for easy and intuitive use by specialized technicians and craftsmen. It is a compact working center, accessible from three sides, which maintains the high performance of the larger models whilst being economical. The EASY JET is ideal for manufacturing furniture parts and interior doors.

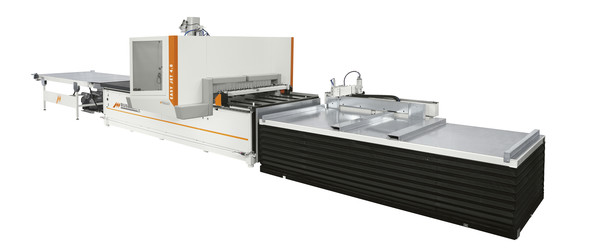

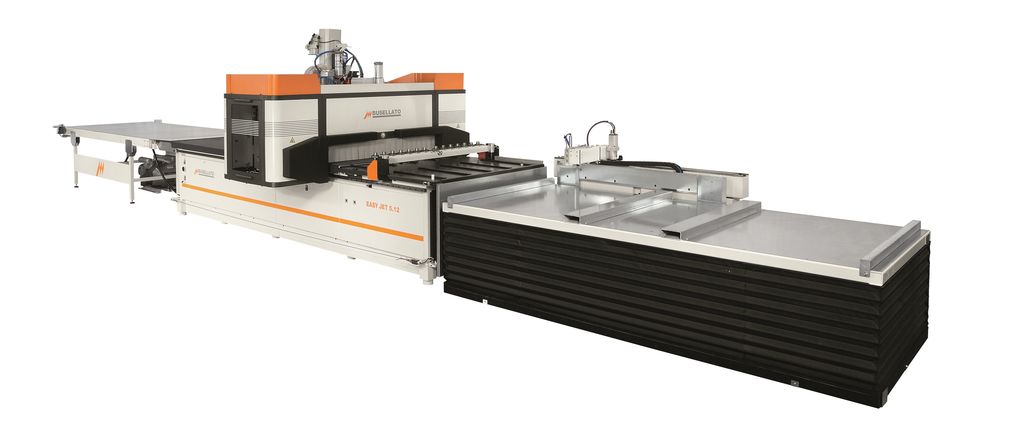

Now available whit automatic loading and unloading system "Cella Nesting"



Advantages
  • Elevato rapporto qualità prezzo
  • Compact structure, reduces the space required for installation
  • Ottima accesibilità operatore
Technical data

Working field X - Y

Easy Jet 4.8

Easy Jet 5.12

Easy Jet 6.12

Easy Jet 7.10

Easy Jet 7.14



2486 mm x 1255 mm

3686 mm x 1555 mm

3686 mm x 1855 mm

3086 mm x 2185 mm

4286 mm x 2185 mm

Workpiece clearance

150 mm

Electrospindle power (S6)

*Version A-B
*Version C-D



6,6 kw (std)
9,5 kw (opt)

Spindles

7  or 12 (std)
11 o 18 (opt)

Tool changer

Easy Jet 4.8

Easy Jet 5.12

Easy Jet 6.12

Easy Jet 7.10

Easy Jet 7.14



  8 std - 11 opt

10 std - 14 opt

11 std - 16 opt

13 std - 19 opt

13 std - 19 opt

Media
Documentation
EasyJet_IT_EN_ES Download
EasyJet_EN_FR_DE Download
