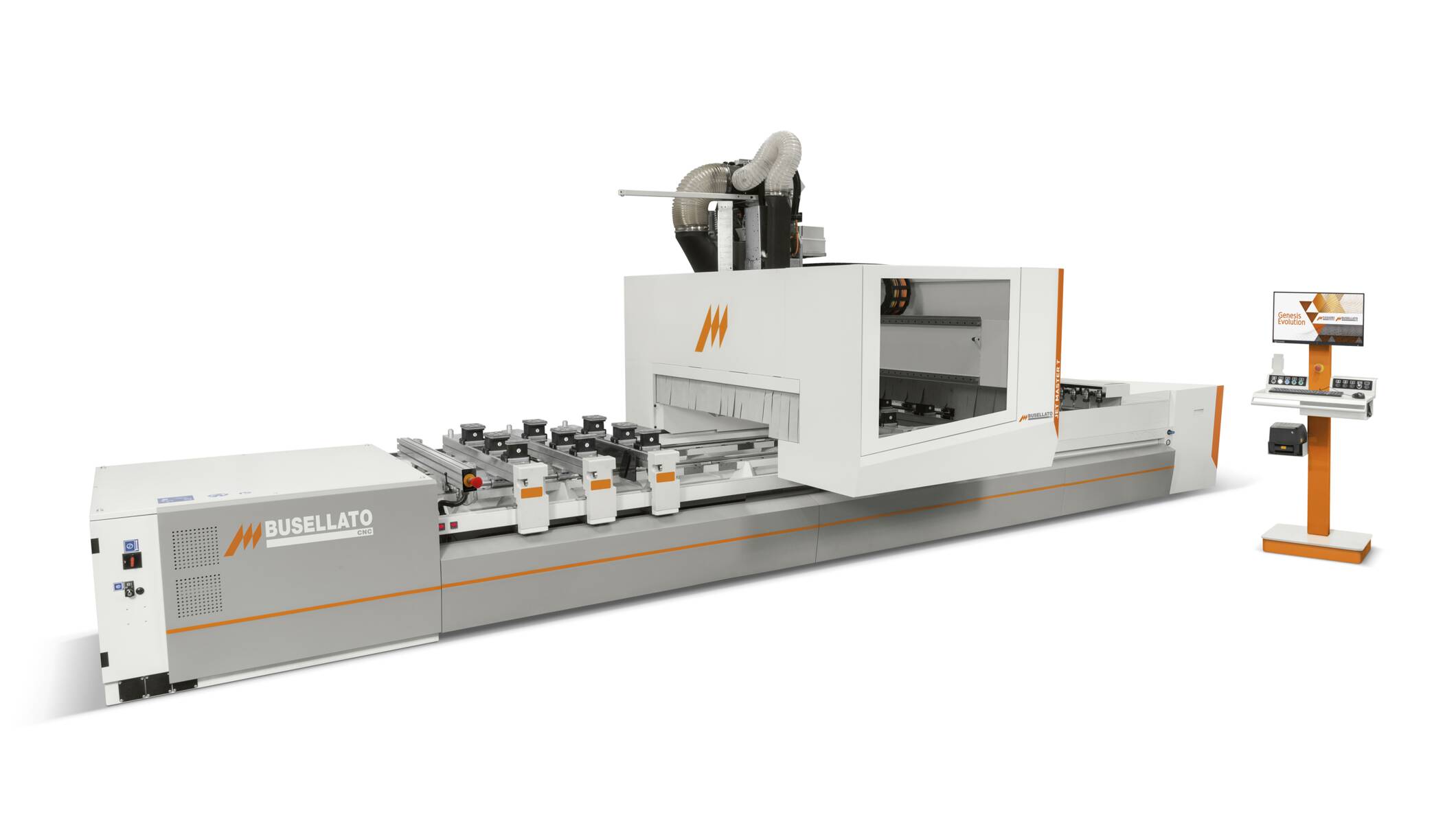

JET MASTER T

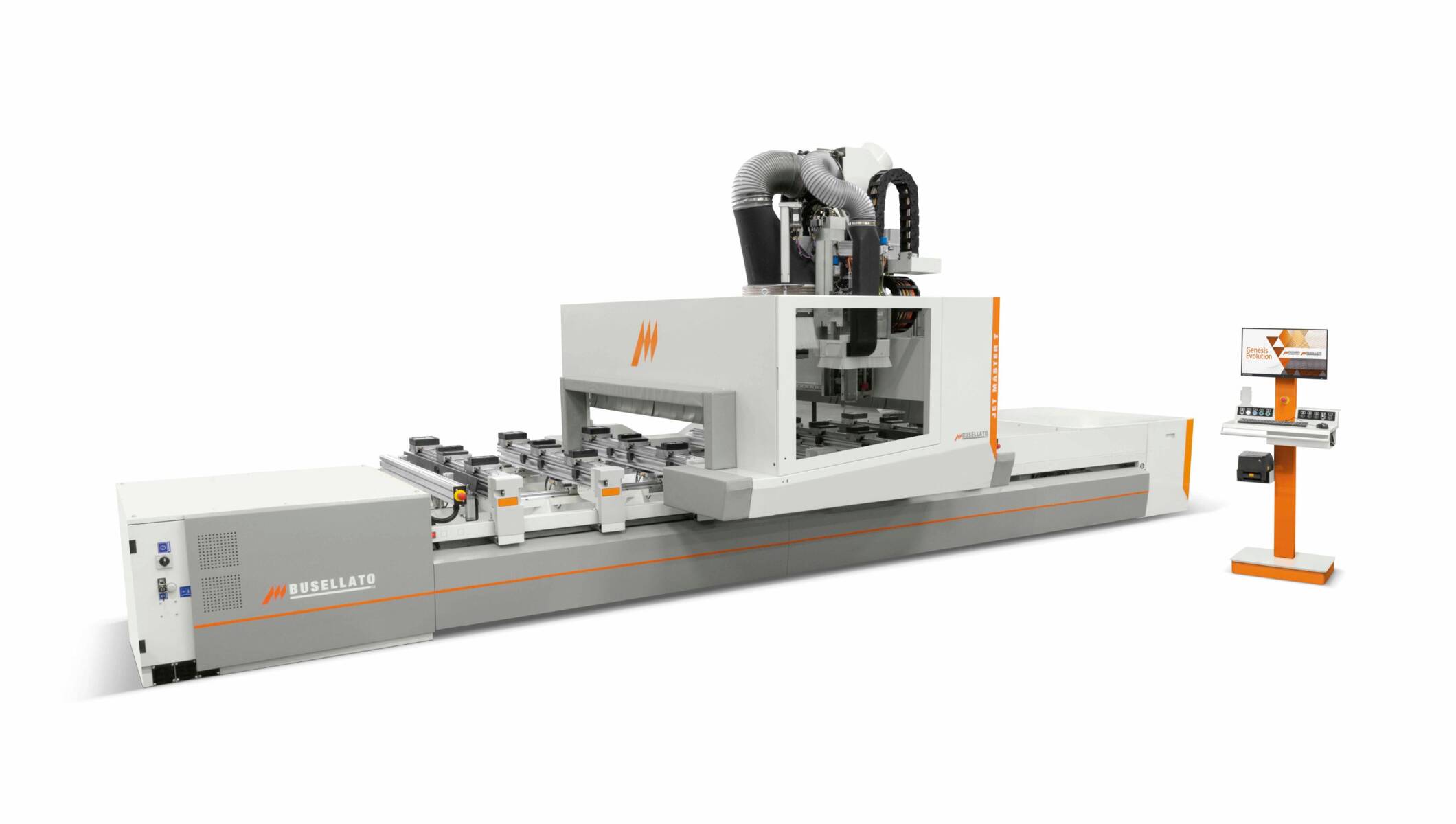

JET MASTER T - Casadei Busellato

New working centers with top performance in its category. Various dimensions and a wide range of equipment make the Jet Master T with panel support working table and jet Master RT with multifunction working table extremely versatile and competitive.

Boring heads of various dimensions, electrospindle with 3, 4 and 5 axis, 1 or 2-outlet horizontal routing units for an extremely flexible machine and suitable for any machining requirement.

Technical data
  JET MASTER T/C   JET MASTER T  JET MASTER T - XL
Working field X 3115 mm 3715 mm 5515 mm
Working field Y 1320 mm 1320/1620 mm 1320/1620 mm
Piece clearance 180 mm 180/250 mm 180/250 mm
Power electrospindle 3/4 axis (S6) 9,5/15 kW 9,5/15 kW 9,5/15 kW
Power electrospindle 5 axis (S6) 10/13,5 kW 10/13,5 kW 10/13,5 kW
Spindles from 18 to 26 from 18 to 30 from 18 to 30
Tool changer until 54 until 54 until 54
Media
Documentation
JET MASTER T_EN_FR_DE Download
JET MASTER T_IT_EN_ES Download
