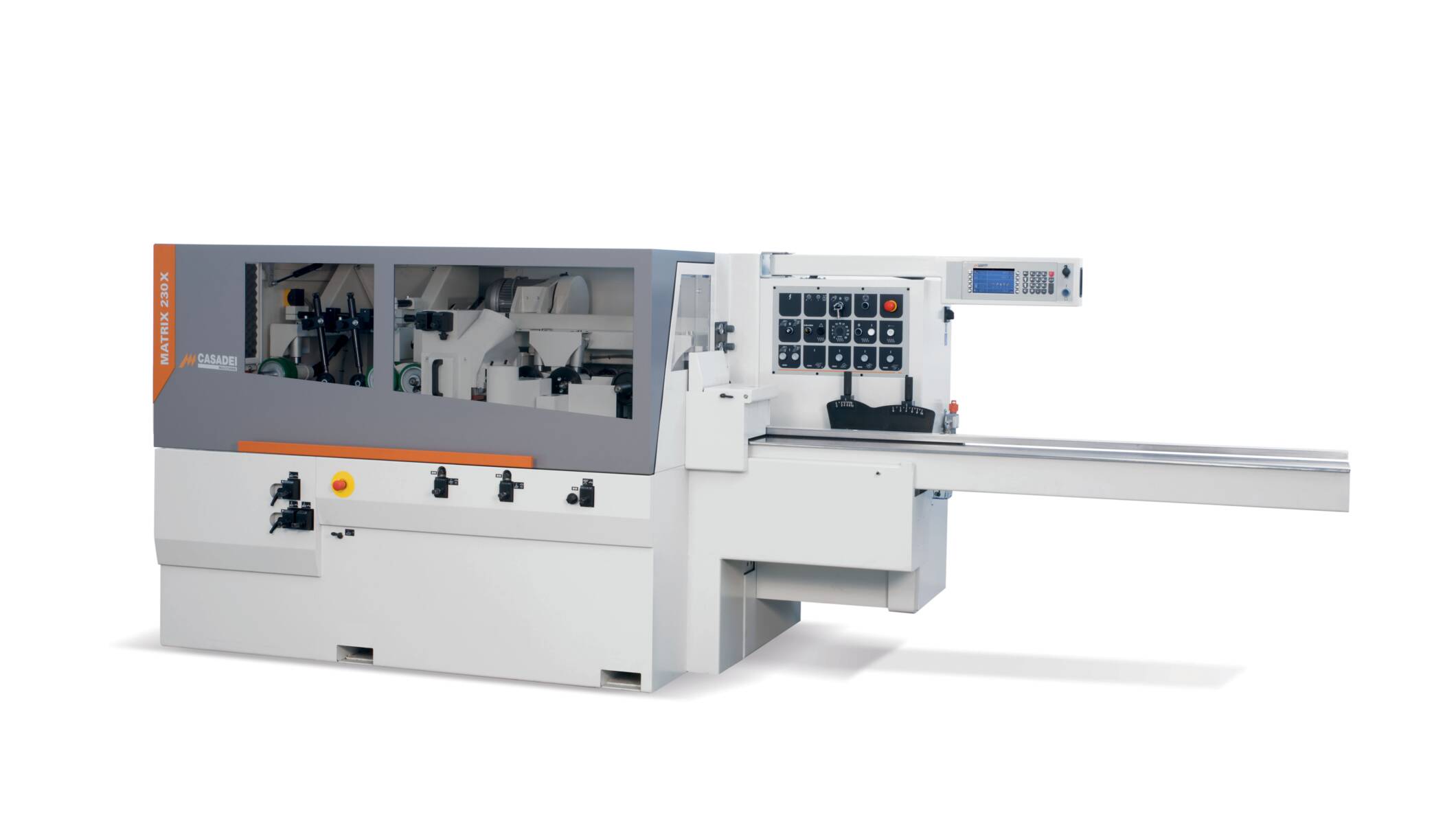

MATRIX 230X

MATRIX 230 is the result of years of researches and development into the engineering and manufacturing of automatic throughfeed moulders.
Reliable and productive is built with quality components, designed and tested to reach the best results.
This new throughfeed moulder fulfils the growing needs of the end use

Advantages

Rapidità nella messa a punto della macchina e semplicità d'uso permettono di ridurre drasticamente i tempi di lavorazione. Questo modello è stato pensato e costruito per rispondere ad alcuni requisiti fondamentali:
- Machining precision
- High finishing quality
- Ergonomics
- Safety

Technical data
  MATRIX 230X
Max. finished stock section 230 x120 mm
Min. working width 25 mm
Min. working height 6 /10 mm
Variable feed speeds by inverter 5÷25 m/min
Horizontal/Vertical spindles axial adjustment 40 mm
Vertical spindles moulding capacity 40 mm
Horizontal spindles motor power 4 kW (5,5 Hp)
Vertical spindles motor power (single motor) 5,5 kW (7,5 Hp)
Universal spindle motor power 4 kW (5,5 Hp)
Documentation
Matrix 230 X_IT_ES Download
Matrix 230 X_EN_FR Download
Matrix 230 X_EN_DE Download
