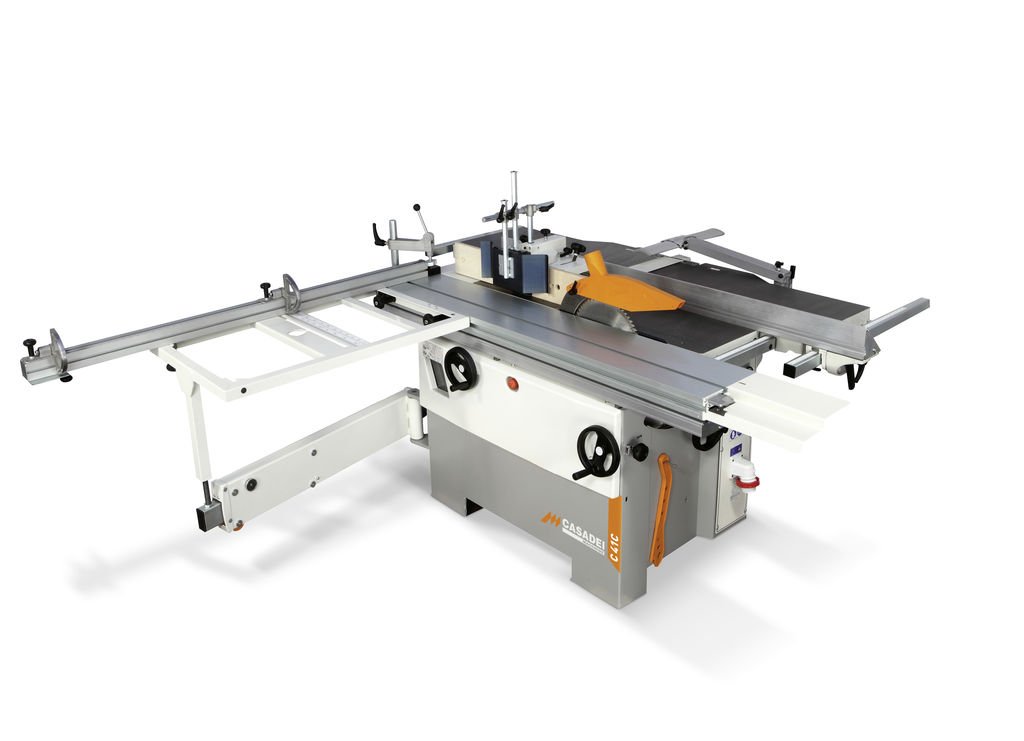

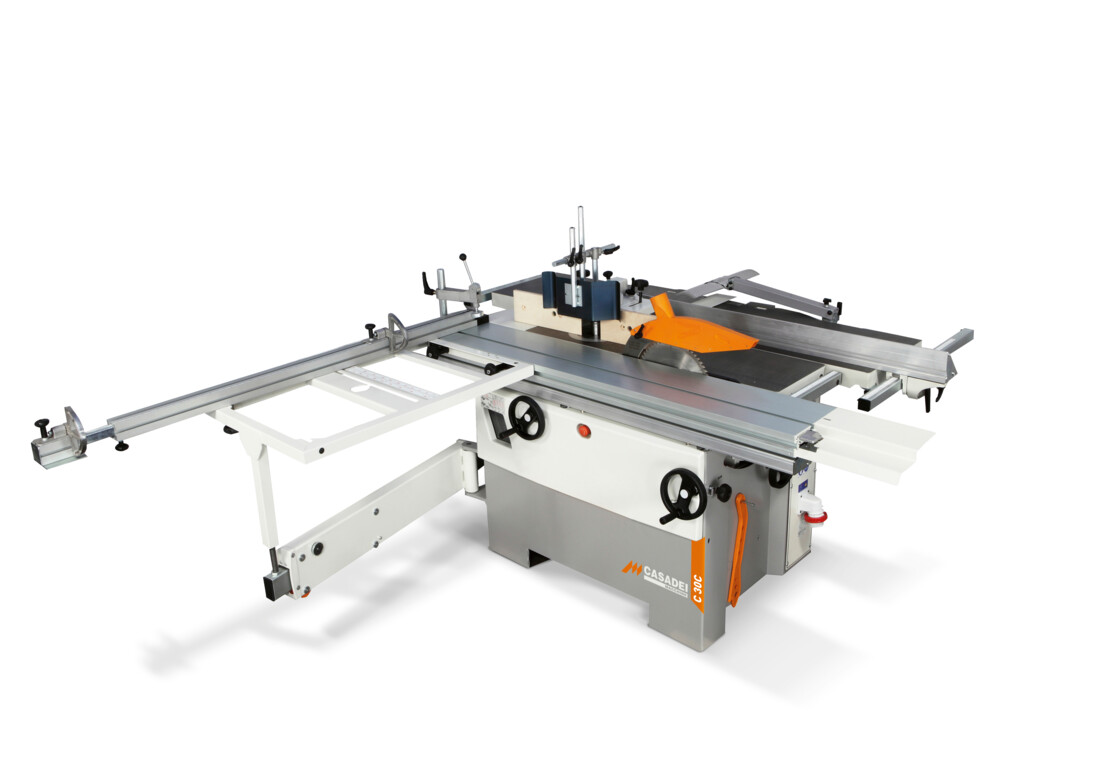

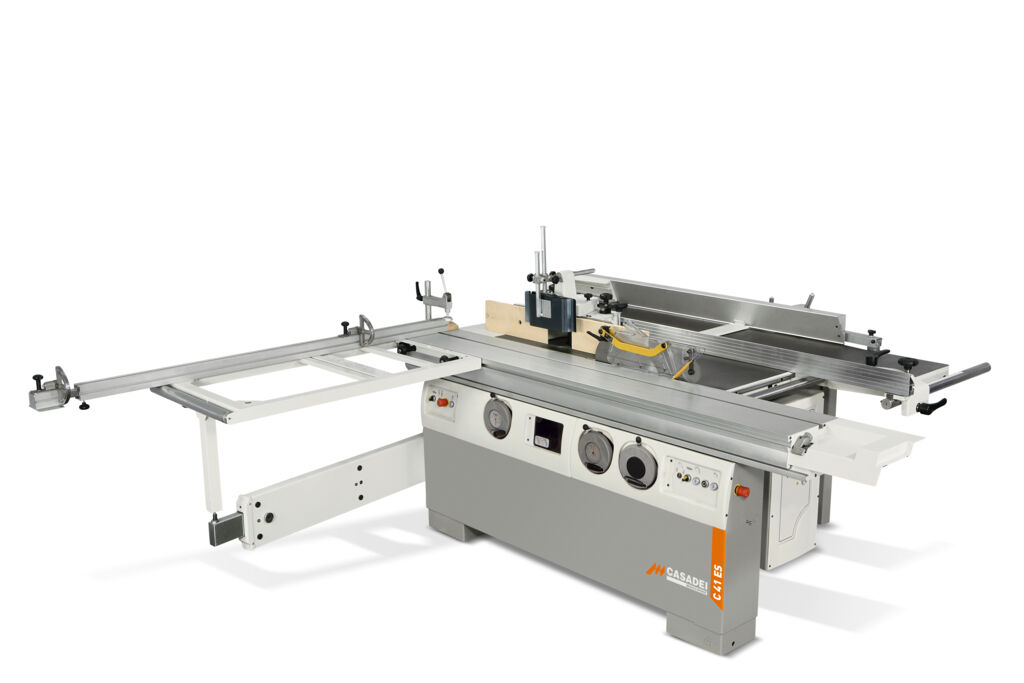

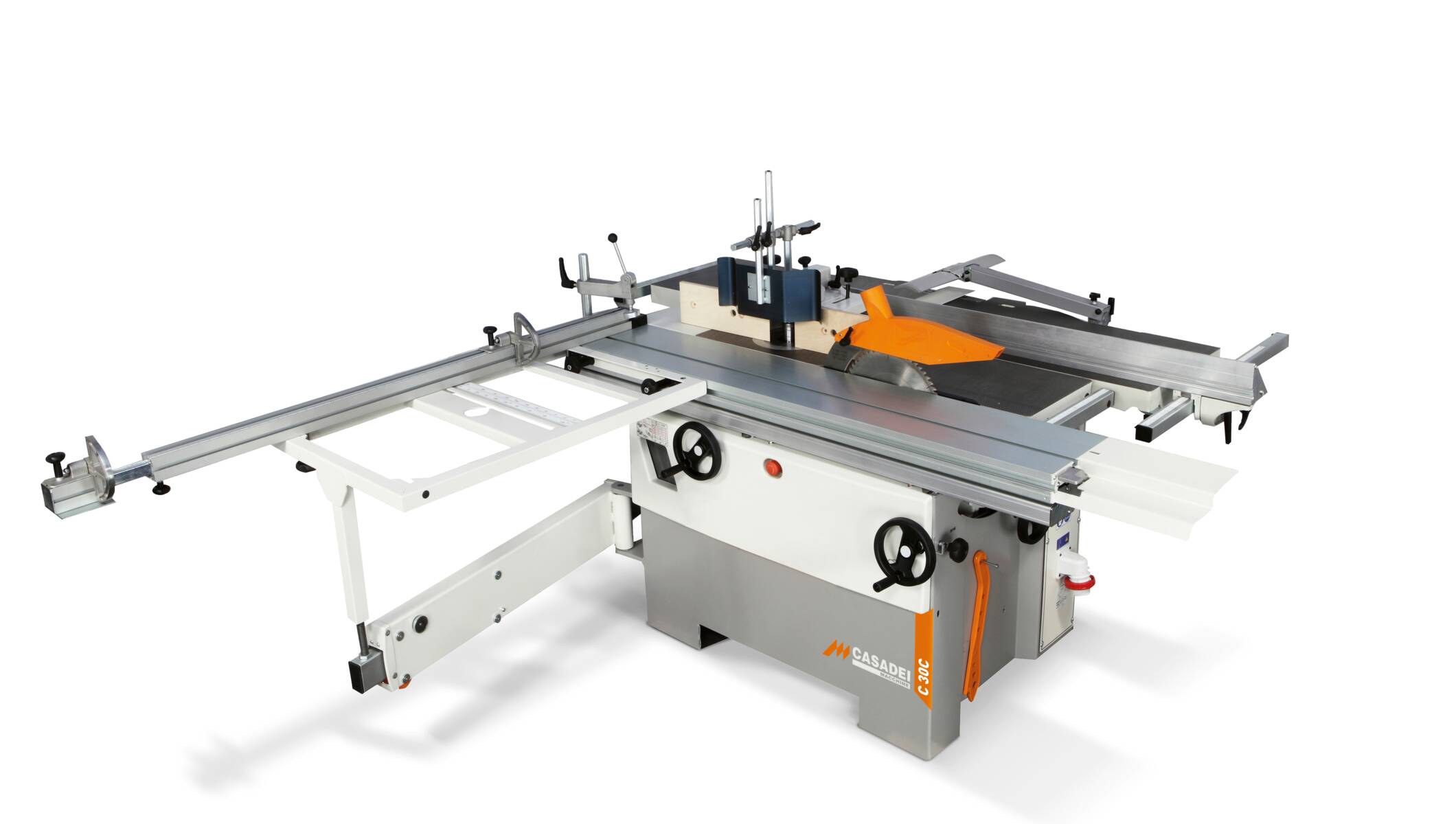

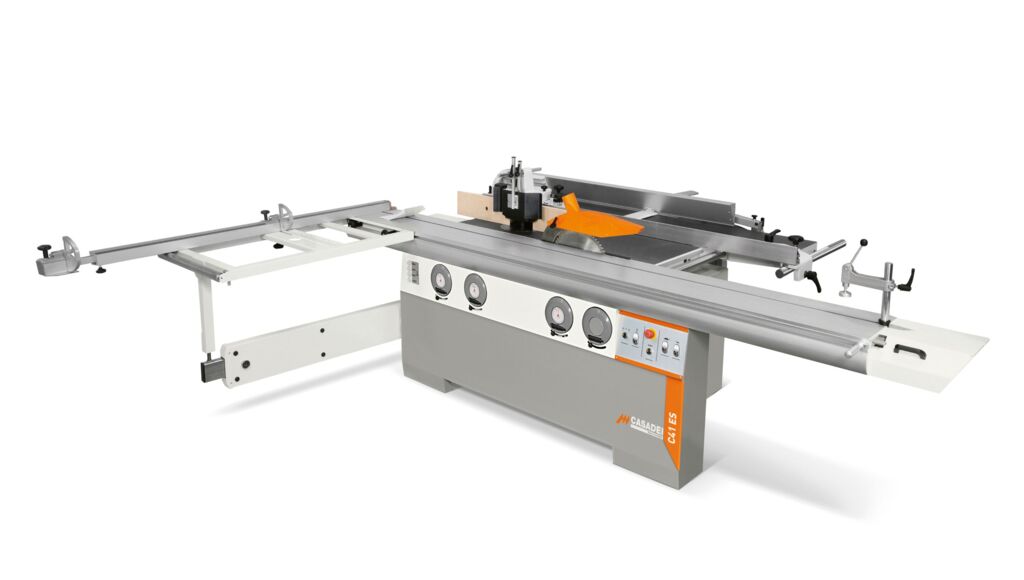

C 30 C / C 41 C / C 41 ES
The universal combined machine models C 30 C - C 41 C - C 41 ES are modern multi-function machines designed with the construction methods and technologies of professional machines.
Flexibility: the wide range of options available make the C 30 C, C41C and C 41 ES combined machines suitable for any machining type. Standard equipment includes 3 powerful independent motors, tilting saw blade, telescopic supporting arm and large dimensioned crosscutting frame to support large panels or heavy solid wood components. Quick machining changeover.
Sturdiness: thick, monolithic steel frame guarantees great construction stability.
| C 30 C | C 41 C | C 41 ES | |
| SURFACE PLANER | |||
| Maximum working width | 300 mm | 410 mm | 410 mm |
| Total length of surface tables | 1510 mm | 1800 mm | 2200 mm |
| THICKNESSING PLANER | |||
| Maximun working width | 300 mm | 410 mm | 410 mm |
| Min./max. working height | 3/230 mm | 3/230 mm | 3/240 mm |
| Feed speed on thicknesser | 7 m/min | 7 m/min | 6/12 mm |
| CIRCULAR SAW | |||
| Max. squaring stroke with crosscutting frame | 1600 mm | 1600 mm | 2250 mm |
| Max. diameter of saw blade with installed scoring unit | 315 mm | 315 mm | 350 mm |
| Cutting width on rip fence | 820 mm | 900 mm | 1000 mm |
| SPINDLE MOULDER | |||
| Max. spindle working height | 100 mm (70 ¾") | 100 mm (70 ¾") | ~ 125 mm |
| Spindle moulder speed at 50 Hz rpm | 3500 / 7000 / 10000 | 3500 / 7000 / 10000 |
3500 / 6000 / 8000 / 10000 |
| MAIN TECHNICAL DATA | |||
| Motor power (no. 3 motors) at 50/60 Hz (HP) | 5 kW (6,6) / 6 kW (8) | 5 kW (6,6) / 6 kW (8) | 5 kW (6,6) / 6 kW (8) |
