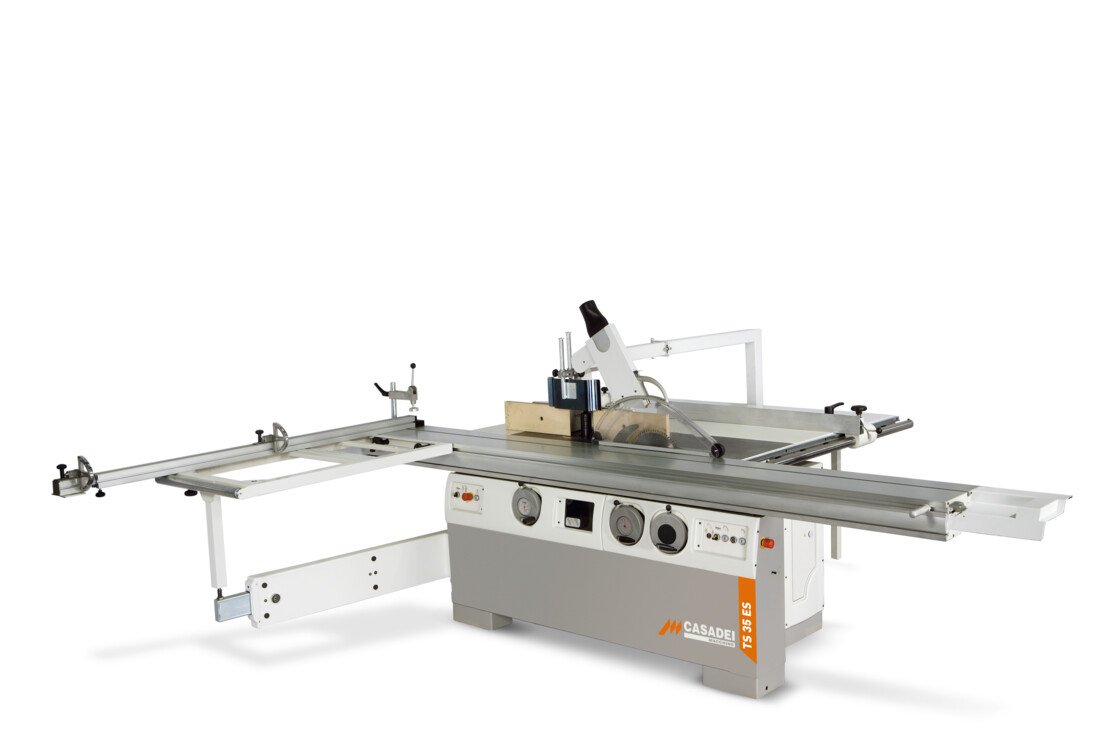

The TS 35 ES combined saw/spindle moulder has been designed to satisfy the most demanding customers.
Reliability: saw carriage with hardened steel prismatic guides and riveted preloaded ball bearings ensuring long lasting precision.
Flexibility: the spindle fence with three linear movements and mechanical numerical readout allows easy machine set-ups without need of any tests, the first workpiece is already perfect. The spindle fence is equipped with repositioning memory.
Sturdiness: cast iron spindle moulder with heavy structure, tiltable on request.
|Saw-spindle moulder table dimensions||1380 x 465 mm|
|Saw blade tilting||90° ÷ 45°|
|Max. diameter of saw blade with scoring unit installed||350 mm|
|Max. squaring stroke (EC) standard||220 mm|
|Max. spindle working height||125 mm|
|Spindle moulder speeds at 50 Hz rpm||3500-6000- 8000-10000|
|Max. dimensions of tool lowered under table||240 mm|
|Motor power 50 Hz||5 kW 6,6 HP|
|Motor power 60 Hz||6 kW 8 HP|
