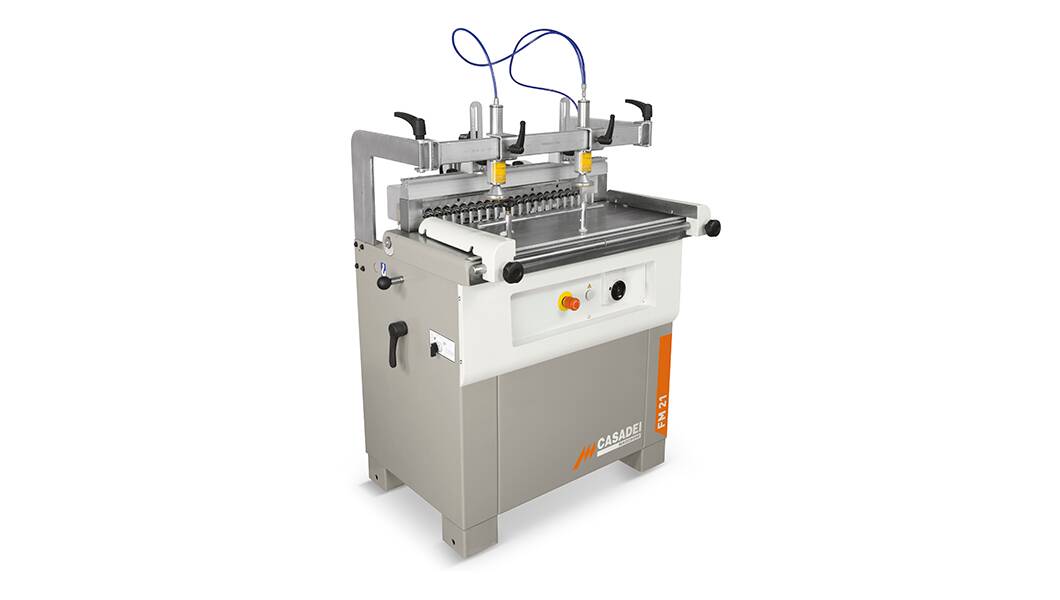

The FM 21 is a simple machine to use but which allows different types of machinings, even complex ones, to be carried out quickly and easily.
Flexibility: The possibility of horizontal, vertical and 45° drilling allows numerous machinings to be carried out. Quick set up and machining changeover.
Reliability: The boring head can be adjusted both in height and in depth. Pneumatic adjustment of the boring head feeding and return speed.
|Worktable dimensions||905 x 372 mm|
|Worktable height||900 mm|
|Spindle rotation speed rpm||2800|
|Max. tool diameter||40 mm|
|Max. height of horizontal boring||60 mm|
|Min/max. panel thickness||10/85 mm|
|Max. panel width under the bridge||833 mm|
|Motor Power at 50 Hz||1,85 kW / 2,5 Hp|
|Motor Power at 60 Hz||2,2 kW / 3 Hp|
